FlexiGuard Conduits & Fittings : FG21-PG16

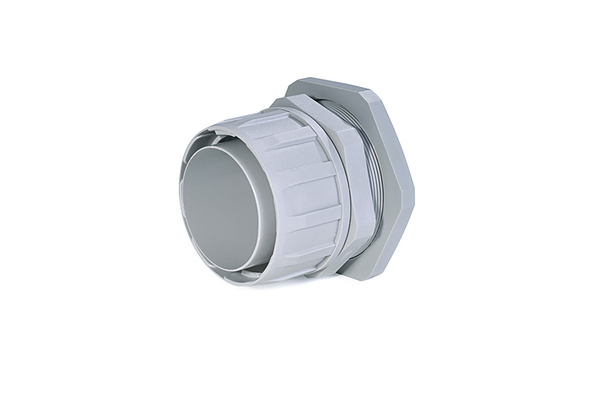

Straight fitting Ø16 PG16-thread, Article number: 167-00513
Features

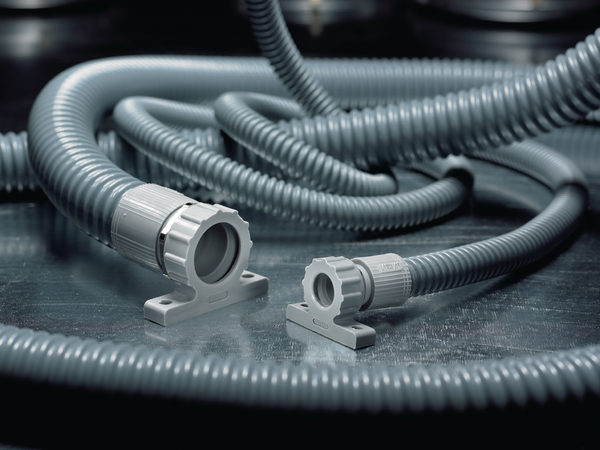

The fittings for Flexiguard protective hoses are available with PG threads (NV) and metric threads (TV). The fittings are easily fastened to the hoses. The fitting has a long, conical shaped inner socket allowing cables to be protected against liquids and meets IP54. The pins on the inside of the fittings provide a firm hold and prevent slippage of the hose. Due to the reinforced outer walls and the use of modified polypropylene, the NV and TV fittings are especially robust.
Certifications & Approvals
Application
Straight swivel external thread.
Fulfils IP54 with FlexiGuard FG conduits.
FG-P Fittings is suitable for following markets and industries
-
Electrical Installation
-
Electronics Industry
-
Telecommunication
More products in this product group
FlexiGuard Conduits & Fittings >| Colour | Grey (GY) |
| Features and Benefits | Straight PP fitting, swivel external thread IP54 with FlexiGuard FG conduits |
| Pack Cont. | 10pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | FG21-PG16-PP-GY |
| Product Family | FG-P Fittings |
| Product Group | FlexiGuard Conduits & Fittings |
| Short Description | Straight fitting Ø16 PG16-thread |
| Type of connection | Thread |
| Variant | Straight |

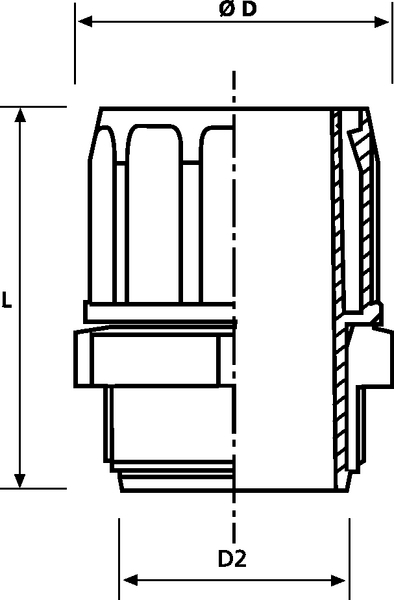

| A/F Thread (A/F2) | 30mm |
| Diameter (D) | 33.0mm |
| Length (L) | 49.8mm |
| Lowest inner diameter | 19mm |
| Min. Bore Size (B) | 14.8mm |
| Nominal ∅ | 21mm |
| Nut Size (NS) | 28.0 |
| Outside ∅ max (OD max.) | 33.0mm |
| Thread Length (TL) | 10mm |
| Thread Size | PG16 |
| ∅ (D2) | 14.8mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| IP-Rating | IP54 |
| Material | Polypropylene (PP) |
| Material of fitting ETIM | Polypropylene (PP) |
| Operating Temperature - °C | -35 °C to +80 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026277325 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 10 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00117m³ |
| Packaging 1 - Weight (kg) | 0.114kg |
| Packaging 1 - Width (m) | 0.13m |
| Packaging 3 - Height (m) | 0.25m |
| Packaging 3 - Length (m) | 0.4m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.04m³ |
| Packaging 3 - Weight (kg) | 11.9kg |
| Packaging 3 - Width (m) | 0.4m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 24000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 306.6kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.114kg |
| ETIM 6.0 | EC001178 |
| ETIM 7.0 Key | EC001178 |
