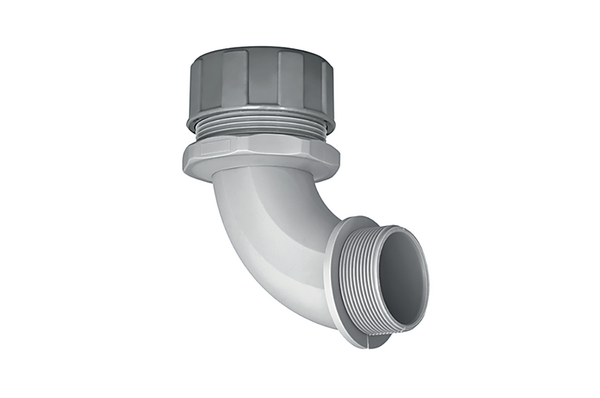

90° Elbow Fitting grey with rigid External Thread ø20mm M20
Art.-No. 166-40803 | PSR20-90-M20-PA66-GY Details

  • High pull-off strength
  • Highly resistant to solvents and oils
  • Free of halogen, sulphur and phosphorus
  • Metric threads supplied with locknuts
  • Fits both PSR and PSRSC conduits
Show more

Request your individual offer now

Application 90° PA66 fitting, fixed external thread. Fulfils IP65 with PSR conduits. Fulfils IP66 and IP67 with PSRSC conduits.
Colour Grey (GY)
Material Polyamide 6.6 (PA66)
Pack Cont. 10pcs.
Package Content packed in Bag
PART DESCRIPTION PSR20-90-M20-PA66-GY
Product Family PSR-90 90° elbow fitting
Product Group Fittings for spiral-reinforced PVC Conduits
Short Description 90° Elbow Fitting grey with rigid External Thread ø20mm M20
Type of connection Snap-connection
Variant 90°-elbow
Angle 90°

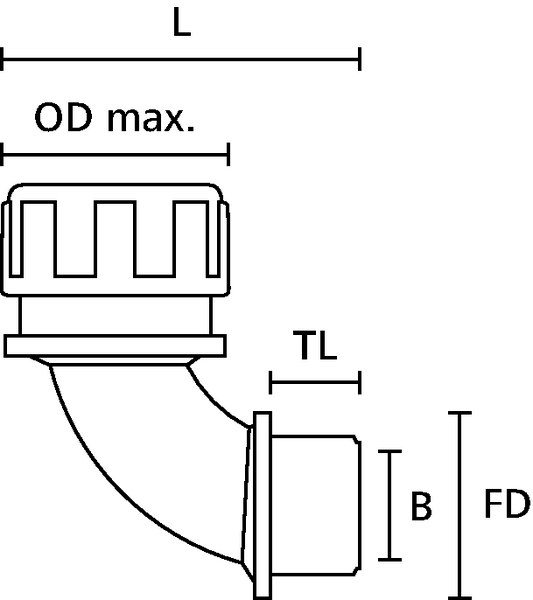

Face Diameter FD (metric) 27mm
Height (H) 29mm
Length (L) 52mm
Lowest inner diameter 14mm
Min. Bore Size (B) 14.5mm
Nominal ∅ 20mm
Nominal ∅ (imperial) 0.81"
Outside ∅ max (OD max.) 33mm
Thread Length (TL) 13mm
Thread Size M20
Weight/Unit 0.01938kg
CE Certification Yes
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
IP-Rating IP65 with PSR conduits, IP66 with PSRSC conduits, IP67 with PSRSC conduits
Operating Temperature -50 °C to +135 °C
Specifications
Specifications ANSI/UL 1696, csa-C22.2 No.227.3
UL OCD link Link
UL-File Number E325250
Country of Origin GB
Customs Number 39174000
GTIN-13 / EAN 4031026410784
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00208
Packaging 1 - Weight (kg) 0.193801kg
Packaging 1 - Width (m) 0.2m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001178
ETIM 8.0 Key EC001178
ETIM 9.0 Key EC001178
