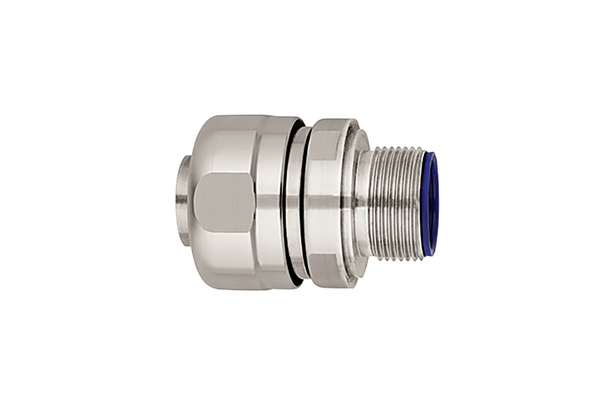

Stainless steel compression fitting, external thread, M32
Art.-No. 166-41604 | PSRSC32-FMCFFSS-M32-SS316/NPB/PA6-ML Details

  • Multipart stainless steel (SS316) compression fitting including elastomeric seal
  • Rounded edges, smooth surfaces and no crevices where food or other substances can collect or bacteria grow with EN standards
  • Can be used for knockouts or threaded entries as fitting rotates until tightened
  • Fits PSRSC conduits

Request your individual offer now

Application Straight fitting, external thread, stainless steel (SS316). Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.
Colour Metal (ML)
Material Stainless Steel (SS316), Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Pack Cont. 1pc.
Package Content packed in Bag
PART DESCRIPTION PSRSC32-FMCFFSS-M32-SS316/NPB/PA6-ML
Product Family PSRSC-FMCFFSS compression fitting for food-processing applications
Product Group Fittings for spiral-reinforced PVC conduits
Short Description Stainless steel compression fitting, external thread, M32

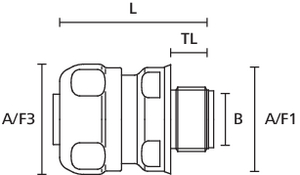

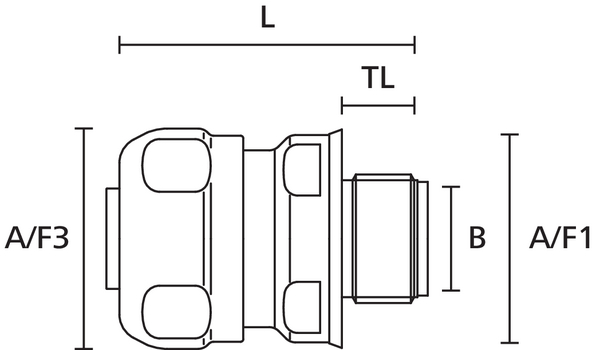

A/F Nut (A/F3) 45mm
Length (L) 53.7mm
Min. Bore Size (B) 24.6mm
Nominal ∅ 32mm
Nominal ∅ (imperial) 1.25"
Thread Length (TL) 15.0mm
Thread Size M32
Weight/Unit 0.22832kg
CAS Number 7439-92-1
CE Certification Yes
Critical Substance Lead in Copper alloy < 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -50 °C to +135 °C
Specifications
Specifications EN 1672-2, EN ISO 14155
Country of Origin GB
Customs Number 73072910
GTIN-13 / EAN 4031026513621
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00166
Packaging 1 - Weight (kg) 0.228321kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC001178
ETIM 8.0 Key EC001178
ETIM 9.0 Key EC001178
