Fittings for spiral-reinforced PVC Conduits PSRSC63-FMC-M63

PSRSC-FMC compression fitting, Article number: 166-41009

Features

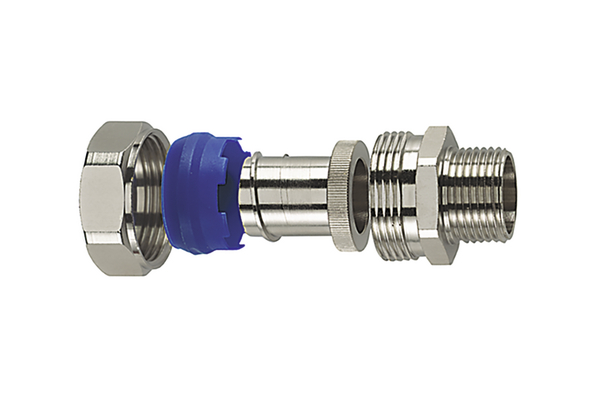

  • Multipart compression fitting including elastomeric seal
  • Can be used for knockouts or threaded entries as fitting rotates until tightened
  • Fits PSRSC conduits

Certifications & Approvals

Application

Straight fitting, fixed external thread, nickel plated brass.
Fulfils IP66, IP67, IP68 and IP69k with PSRSC conduits.

PSRSC-FMC compression fitting is suitable for following markets and industries

Colour Metal (ML)
Description Short (BMEcat) (max. 150 characters) Compression Fitting with rigid External Thread for Spiral-Reinforced PVC Conduits ø63mm M63
Features and Benefits Straight fitting, fixed external thread, nickel plated brass. Fulfils IP66, IP67 and IP68 with PRSCS conduits.
GLOBAL PART DESCRIPTION PSRSC63-FMC-M63-NPB/PA6-ML
Pack Cont. 1pc.
Package Quantity per Bag
Product Family PSRSC-FMC compression fitting
Product Group Fittings for spiral-reinforced PVC Conduits
Type of connection Thread
Variant Straight
A/F Nut (A/F3) 70mm
Height (H) 70mm
Length (L) 58.8mm
Lowest inner diameter 49mm
Min. Bore Size (B) 49.0mm
Nominal ∅ 63mm
Nominal ∅ (imperial) 2-1/2"
Outside ∅ max (OD max.) 70mm
Thread Length (TL) 20.0mm
Thread Size M63
ELV compliant Dir. Art. 4 (2) YES
Halogenfree Yes
Hazardous good No
IP-Rating IP68
Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
Material of fitting ETIM Metal (MET)
Operating Temperature - °C -50 °C to +135 °C
Specifications
EAN / GTIN 4031026410906
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.19m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00213
Packaging 1 - Weight (kg) 0.42kg
Packaging 1 - Width (m) 0.16m
Weight 0.42kg
ETIM 5.0 EC001178
ETIM 6.0 EC001178
