FlexiGuard Conduits & Fittings
Art.-No. 167-00532 | TV13.5/M20-PP

Copied
This product is not available anymore.
  • One piece, easy fit
  • Swivel thread
  • Vibration and tension resistant
  • Large bore size
  • Inner ferrule protects cables
  • Good resistance to chemicals
Show more

Request your individual offer now

Application The TV fittings and TH fasteners are used to protect against dust and moisture, for instance outdoors or wherever dust and moisture are a particular hazard.
Material Polypropylene (PP)
PART DESCRIPTION TV13.5/M20-PP
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family FG-M Fittings
Product Group FlexiGuard Conduits & Fittings
Type TV13.5/M20
Type of connection Thread
Variant Straight

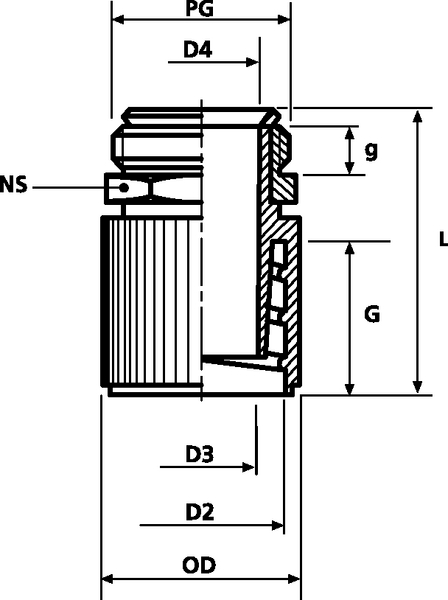

⌀ (D2) 13.0mm
Diameter (D) 29.7mm
Length (L) 47.5mm
Lowest inner diameter 11mm
Nominal ⌀ 16mm
Nut Size (NS) 20.0
Outside ⌀ (OD) 29.7mm
Thread Size M20
Flammability UL 94 V2
Halogen-free Yes
IP-Rating IP54
ROHS compliant Yes
Specifications
Country of Origin DE
ETIM 7.0 Key EC001178
ETIM 8.0 Key EC001178
ETIM 9.0 Key EC001178
UNSPSC Key 39131601
