Tubed Fibre Optic Splice Tray : TRAY-MR-TB-03

Multi-Ribbon, Article number: 857-40345

Features

  • Positive fibre management minimum bend radius 35mm
  • 4 fibre entry ports
  • Moulded splice holder fins for 8 or 12 fibre ribbon cable or 3A (heatshrink) splice protectors
  • Maximum splice capacity of 12 (8 or 12 fibre) ribbon cable or 36 fibres (3A)
Colour White (WH)
Package Quantity per Bag
PART DESCRIPTION TRAY-MR-TB-03
Product Family Multi-Ribbon
Product Group Tubed Fibre Optic Splice Tray

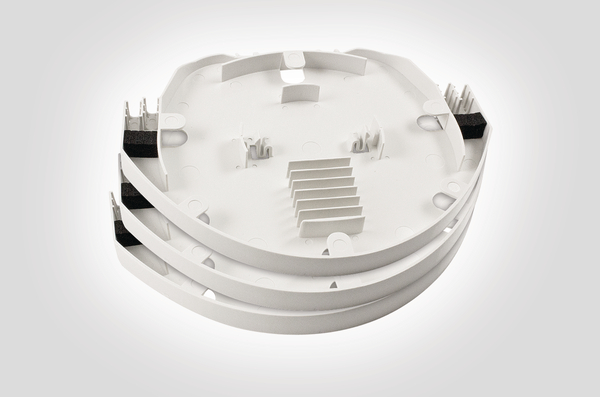

Qty Trays 3

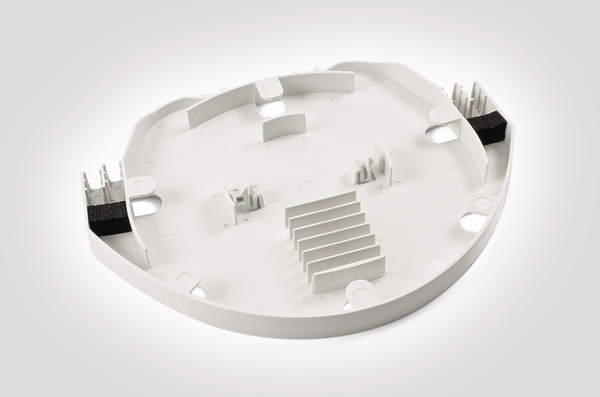

Technical Description The Multi-Ribbon tray is an elliptical tray designed for high fibre count multiple applications which is manufactured from ABS and finished to a high specification to eliminate the risk of snagging and microbends. All retaining tabs have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 182 x 148 x 14mm. Each Multi-Ribbon tray accepts 12 x 12 or 8 fibre ribbon cable or 36 x 3A (heatshrink) splice protectors and is suitable for use with the UFC and FDN tubed closures.
Type of Tray Multi-Ribbon
Depth (D) 14mm
Height (H) 148mm
Width (W) 182mm
Material Acrylonitrile Butadiene Styrene (ABS)
EAN / GTIN 5022660133671
ETIM 6.0 EC001123
ETIM 7.0 Key EC001123
