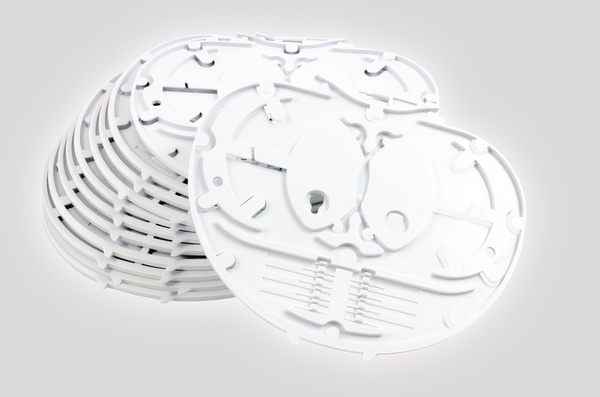

Integrated Routing Fibre Optic Splice Tray : TRAY-SC-IR-12

IR Single Circuit SC, Article number: 857-40244

Features

  • Positive fibre management - minimum bend radius 30mm
  • 2 fibre entry ports
  • Moulded splice holder fins for heatshrink (3A) or Crimp (ANT) splice protectors
  • Maximum splice capacity of 4 fibres
Colour White (WH)
Content 12 x IR Single Circuit Trays
Package Quantity per Bag
PART DESCRIPTION TRAY-SC-IR-12
Product Family IR Single Circuit SC
Product Group Integrated Routing Fibre Optic Splice Tray
Qty Trays 12
Technical Description The IR single circuit tray is manufactured from ABS and finished to a high specification to eliminate the risk of snagging or microbends. All retaining tabs on the tray have radius edges and rounded corners where fibre may pass. The overall dimensions of the tray are 148 x 126 x 3.5mm. The IR single circuit tray is suitable for use in the UFC-IR, FDN-IR and FML-IR closures and enclosures.
Type of Tray Integrated Routing SC

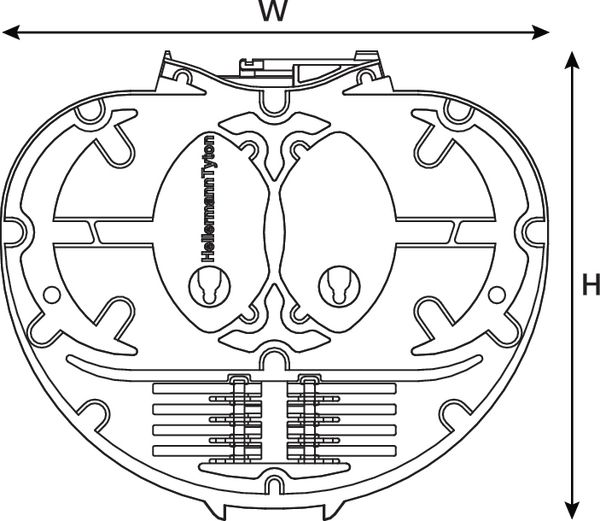

Depth (D) 3.5mm
Height (H) 126mm
Width (W) 148mm
ELV compliant Dir. Art. 4 (2) YES
EAN / GTIN 5022660100581
Packaging 1 - Height (m) 0.381m
Packaging 1 - Length (m) 0.254m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.2kg
ETIM 6.0 EC001123
ETIM 7.0 Key EC001123
