Arrowtag Plate 62.5x4.7 mm transparent
Art.-No. 151-41119 | AT1-PA66-NA Details

  • Blank nylon arrowhead shape plate fixed with a cable tie
  • Identify with a T82 pen or Ovalgrip markers
  • AT1 for 7 size 50 Ovalgrip markers
  • AT2 for 8 size 85 Ovalgrip markers
  • AT3 for 14 size 85 Ovalgrip markers
  • Custom printed plaques are available on request
Show more

Request your individual offer now

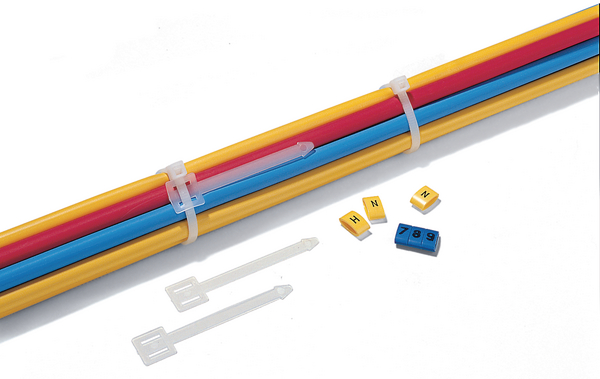

Application The plates are suitable for applying to larger pipes and cables before or after termination has taken place. They can be marked with Ovalgrip markers or manually using the T82 series of indelible markers pens.
Colour Natural (NA)
Fixation Method Others
Identification Plate Position attached to bundle
Local order number AT1.NN3P
Marker tiles per carrier 7
Material Polyamide 6.6 (PA66)
PART DESCRIPTION AT1-PA66-NA
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family Arrowtag
Product Group Identification ties and plates for marking cable bundles
Recommended Ovalgrip Size 50
Short Description Arrowtag Plate 62.5x4.7 mm transparent
Type AT1
Variant Other
With label space Yes

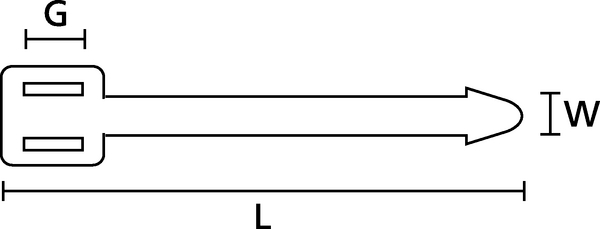

Length (L) 62.5mm
Print Method manual marking
Strap Width max. (G) 7.40mm
Weight/Unit 0.000382kg
Width (W) 4.70mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660301889
Packaging 1 - Height (m) 0.015m
Packaging 1 - Length (m) 0.225m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00051
Packaging 1 - Weight (kg) 0.038201kg
Packaging 1 - Width (m) 0.15m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Width (m) 0.39m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
