16/04/2024

Carrier for label 19.00 mm transparent / reel=25 m
Art.-No. 525-19003 | HCR18-PEUV-CL Details

  • Versatile transparent carriers for HFX labels used for temporary or permanent marking
  • Fixed in place using T18 series cable ties, screws or rivets (carrier HC06, no rivet hole)
  • Protects inserted HFX label against damp, dirt, damage and UV radiation
  • Helafix HC supplied as cut lengths in bags, pre-cut and pre-punched rivet hole (carrier HC06 has no punched hole)

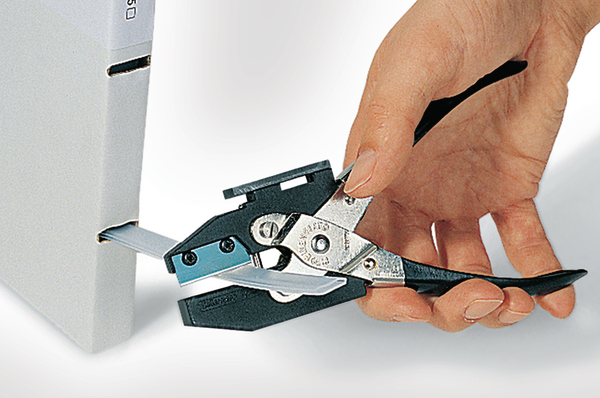

  • Helafix HCR supplied in continuous tube format and can be cut to size with HCT tool
  • Helafix HFX labels designed to fit into HC and HCR carriers
Show more

Request your individual offer now

Application Marking of cable looms, cables, pipes, transport systems, valves, sensors, for inventory marking on machines or other parts.
Chem. Material Properties Resistance to UV light, water and a variety of solvents.
Colour Transparent (CL)
Fixation Method plug in
Key product features non-adhesive
Local order number HCR 18
Material Polyethylene, UV Resistant (PEUV)
Pack Cont. 25m
Package Content packed in Reel
PART DESCRIPTION HCR18-PEUV-CL
Product Family Helafix HCR Carriers continuous
Product Group Carrier marking system, laser printer
Self adhesive (Yes/No) No
Short Description Carrier for label 19.00 mm transparent / reel=25 m
Variant Roller form
With label space No
Height (H) 19.00mm
Strap Width max. (G) 2.50mm
Weight/Unit 0.044kg
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -60 °C to +65 °C
Specifications
Country of Origin SE
Customs Number 39269097
GTIN-13 / EAN 4031026165486
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 25
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.0045
Packaging 1 - Weight (kg) 1.09kg
Packaging 1 - Width (m) 0.3m
Reel Length 25.0m
EFO Norway block number 020107
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
