Pre-printed Cable Markers : HGDC2-5 2

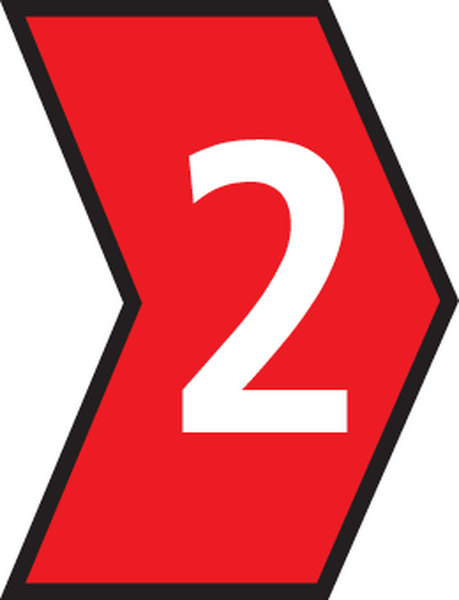

Slide-On Cable Marker Chevron Cut 2-5 mm red Imprint 2Article number: 515-02622
Features
- Easily apply one size marker to wide range of cables
- Markers are applied before termination takes place
- Chevron cut to lock markers together ensuring text remains in place
- Traditional wire marking available in yellow, white and colour code
- Flexible material so product returns securely on the wire
- Applicator tool TJC available
Certifications & Approvals
Application
Helagrip is used to mark cable and wire. Ideally suited to panel building, mass transit, utilities, telecommunications, and electrical contracting.
Depending on marker size, the product is supplied either on a reel (HGDC) or in a plastic bag (HGBC).
Markers are available as standard in international resistor colour code and yellow material marked in black. White material marked in black is available to special order.
Characters are 0-9, A-Z, and standard electrical symbols.
More products in this product group
Pre-printed Cable Markers >| Application Tool | TJC2-5 |
| Colour | Red (RD) |
| Colour of Print | White (WH) |
| Fixation Method | Suspend |
| Marking Text | 2 |
| Pack Cont. | 1000pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | HGDC2-5 2-PVC-RD |
| Product Family | Helagrip, slide on, chevron cut |
| Product Group | Pre-printed Cable Markers |
| Short Description | Slide-On Cable Marker Chevron Cut 2-5 mm red Imprint 2 |
| Type | HGDC2-5RD2WH |
| Variant | Roller form |
| With label space | No |
|
|
| Bundle ∅ max. | 5.0mm |
| Bundle ∅ min. | 2.0mm |
| Length (L) | 3.5mm |
| Outside ∅ max. (imperial) | .196" |
| Outside ∅ min. (imperial) | .078" |
| Print Method | Hot foil |
| Width (W) | 4.3mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V0 (3 mm) |
| Hazardous good | No |
| Material | Flexible Polyvinyl Chloride, cadmium free (PVC) |
| Operating Temperature - °C | -65 °C to +105 °C, intermittent +135 °C |
| Specifications |
|
| Specifications | BS-2782-540B, BS-6746C, IEC 757 |
|
|
|
| EAN / GTIN | 5022660490156 |
| Packaging 1 - Height (m) | 0.009m |
| Packaging 1 - Length (m) | 0.16m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.00023m³ |
| Packaging 1 - Weight (kg) | 0.09kg |
| Packaging 1 - Width (m) | 0.16m |
| Packaging 2 - Height (m) | 0.045m |
| Packaging 2 - Length (m) | 0.16m |
| Packaging 2 - Qty | 5000 |
| Packaging 2 - Type | Carton |
| Packaging 2 - Volume (m³) | 0.0012m³ |
| Packaging 2 - Weight (kg) | 0.45kg |
| Packaging 2 - Width (m) | 0.16m |
| Weight | 0.09kg |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 Key | EC001530 |
