Cable label, self laminating, orange/transparent, manual marking, 19.05x25.40mm, H2=76.20mm, 60pcs.
Art.-No. 598-41402 | HSMB-C3-1402-CL/OG Details

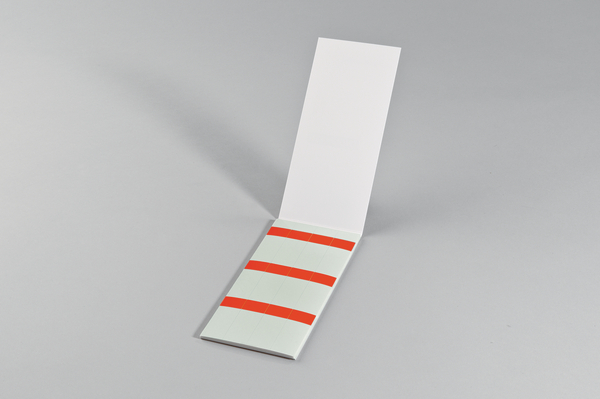

  • Self-laminating labels supplied in handy pocket-sized booklets
  • Booklet cover protects labels when stored
  • Ideal for low volume maintenance and repair work
  • Easy to write on and dispense labels
  • Laminating function gives excellent protection against humidity and mechanical abrasion
  • Applicator tool for clean application enclosed
  • Write text with specially formulated fast-drying ink T82 pens
Show more

Request your individual offer now

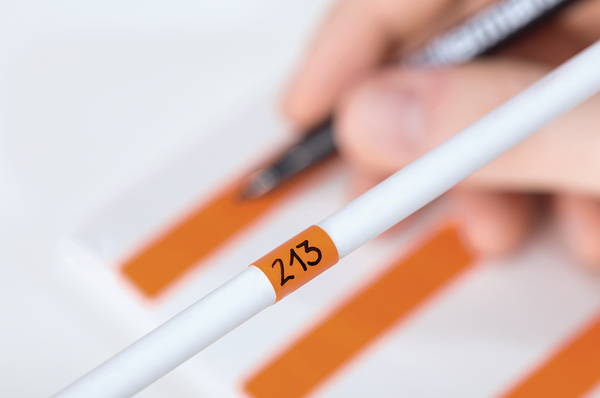

Application A quick and simple on-site solution, for either permanent or temporary marking of wires, cables and pipes.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties Resistant to water, oil and many solvents.
Colour Orange (OG), Transparent (CL)
Colour Marking Field Orange (OG)
Local order number HSMB-C3-1402-OGCL
Material Type 1402, Vinyl (1402)
PART DESCRIPTION HSMB-C3-1402-CL/OG
Pack Cont. 60pcs.
Package Content packed in Pack
Product Family HELASIGN, Material 1402, Booklet
Product Group Self-laminating labels, manual marking
Self adhesive (Yes/No) Yes
Short Description Self-laminating labels, manual marking, booklet, 25.40x19.05x76.20 mm, orange-transparent
Type HSMB-C3
Variant Adhesive label
Bundle Diameter max (metric) 18.20mm
Bundle ∅ 9.10-18.20mm
Bundle ∅ min. 9.10mm
H printable 19.05mm
Height (H) 19.05mm
Height (H2) 76.20mm
Outside ∅ max. (imperial) .716"
Outside ∅ max (OD max.) 18.20mm
Outside ∅ min. (OD min.) 9.1mm
Outside ∅ min. (imperial) .358"
Print Method manual marking
Thickness (T) 80.0µm
Thickness of Adhesive (TA) nom. 27.5µm
Thickness of Foil 80
Thickness of foil test method ASTM D3652-83
Weight/Unit 0.000667kg
Width (W) 25.40mm
Width of Liner (WL) 76.20mm
Adhesive Acrylic
Adhesive Operating Temperature -40 °C to +80 °C
Curing Temperature from +8 °C
ELV compliant Dir. Art. 4 (2) YES
Halogen-free No
Hazardous Goods No
Initial tack 110g/cm²
Initial tack ASTM D2979-71
Operating Temperature -40 °C to +80 °C
Peel strength 550 N/m
Peel strength test method PSTC 7
Pre-Printed No
ROHS compliant Yes
Shear strength 120h
Shear strength test method FINAT FTM 7
Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
Country of Origin DE
Customs Number 39199080
GTIN-13 / EAN 4031026295169
Labels per Row 3pcs.
Labels per Sheet 6pcs.
Packaging 1 - Height (m) 0.015m
Packaging 1 - Length (m) 0.2m
Packaging 1 - Qty 60
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00027
Packaging 1 - Weight (kg) 0.040001kg
Packaging 1 - Width (m) 0.09m
Sheets per Pack 10pcs.
Storage Temperature +21 °C
Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
