14/11/2024

Marking Plate 63.5x44.4 mm transparent
Art.-No. 151-42269 | IMP2.5W1.75-PA66-WH Details

  • IT and IMP plates for identifying large cable bundles or flat surfaces

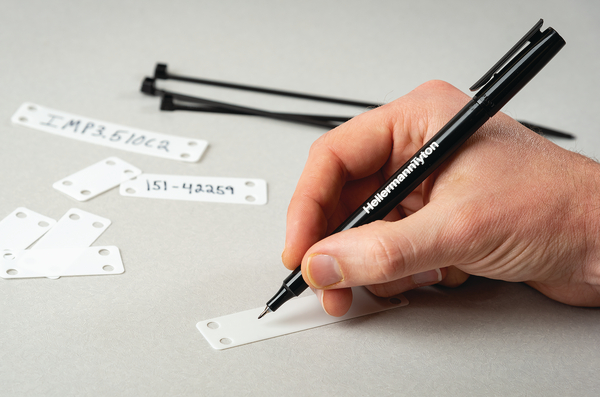

  • Mark IT and IMP plates with printable labels or T82 pens
  • Fix with cable ties or rivets
  • Custom printed plaques are available on request

Request your individual offer now

Application The IMP and IT range of marker plates are suitable for applying to large cable bundles before or after termination has taken place. The marker plates can also be riveted if required. They are secured with cable ties of any length with a maximum width of 4.8 mm. They can be written on by hand using either a black or red T82 indelible marker pen.
Colour White (WH)
Fixation Method Others
For Ties T18, T25, T30, T40, T50, T60
Identification Plate Position attached to bundle
Material Polyamide 6.6 (PA66)
PART DESCRIPTION IMP2.5W1.75-PA66-WH
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family IMP Plates
Product Group Identification ties and plates for marking cable bundles
Recommended Labels TAG43-41TD1
Short Description Marking Plate 63.5x44.4 mm transparent
Type IMP2.5W1.75
Variant Other
With label space Yes

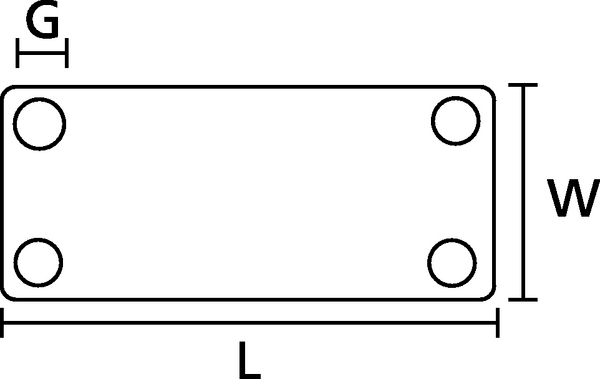

Height (H) 44.45mm
Length (L) 63.5mm
Length (L2) 51.56mm
Print Method manual marking
Strap Width max. (G) 4.80mm
Strap Width max. (G) (imperial) 0.18"
Thickness (T) 0.4mm
Weight/Unit 0.0012kg
Width (W) 44.7mm
Width (W2) 51.56mm
Width printable 51.60mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026122953
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.123m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00049
Packaging 1 - Weight (kg) 0.127kg
Packaging 1 - Width (m) 0.134m
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 6.97kg
Packaging 3 - Width (m) 0.3175m
Packaging 4 - Height (m) 1.209m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.161
Packaging 4 - Weight (kg) 160.4kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
UNSPSC Key 55121717
