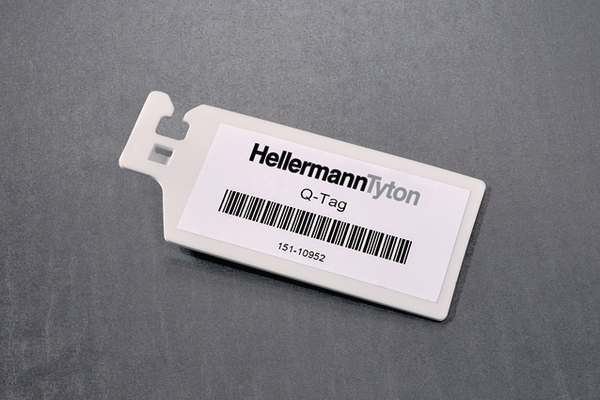

Identification tags for marking cable bundles QT7040S

Q-tags, Article number: 151-10952

Features

  • Identify cable or cable bundle
  • Quickly read or scan printed information
  • Mark by hand with T82 series marker pen or use printed adhesive label
  • HellermannTyton offers complete printing solution (printers, labels, ribbons)
  • Perfect combination with Q-ties to safely secure and mark cables with highly visible text

Certifications & Approvals

Application

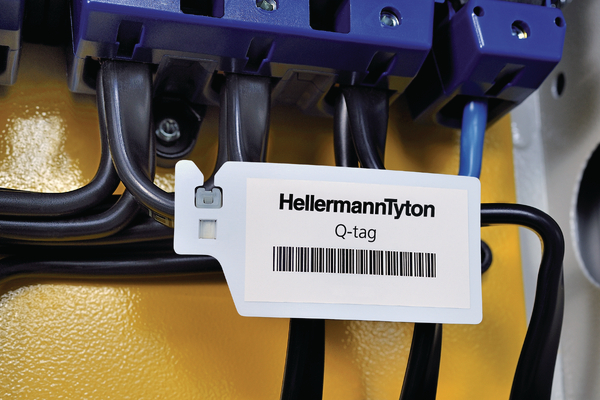

Q-tags are used to identify a cable or a cable bundle and are secured with a Q-tie. The Q-tag’s flag design allows the user to quickly read or scan the printed information.

Q-tags is suitable for following markets and industries

Colour White (WH)
Description Short (BMEcat) (max. 150 characters) Marking Plate 70X42 mm white
Features and Benefits Besides fastening and fixing, the identification of cables is another important aspect of cable management. The Q-tag cable markers can be perfectly used with Q-ties. The tags offer different options for marking: • manual with marker pen • with adhesive label
GLOBAL PART DESCRIPTION QT7040S-PA66-WH
Marking Text blank
Mounting method Others
Pack Cont. 50pcs.
Package Quantity per Bag
Product Family Q-tags
Product Group Identification tags for marking cable bundles
Recommended Labels TAG63TD1
Type QT7040S-PA66-NA-C1
Variant Other
With label space Yes

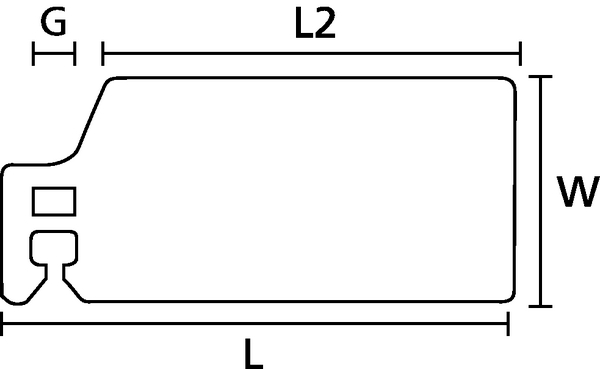

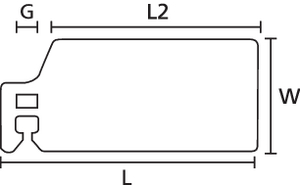

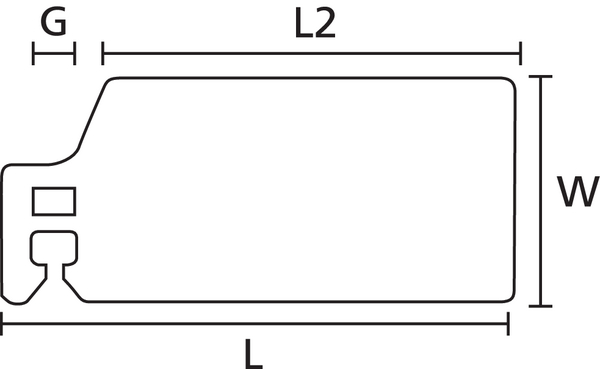

Height (H) 42.0mm
Length (L) 88.0mm
Length (L2) 70.0mm
Print Method Manual
Strap Width max. (G) 3.6mm
Strap Width max. (G) (imperial) 0.14"
Thickness (T) 1.4mm
Width (W) 88.0mm
Width of printable area (Metric) 40.00mm
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026413853

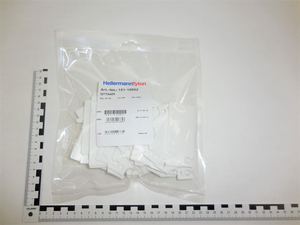

Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.14m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0014
Packaging 1 - Weight (kg) 0.2699kg
Packaging 1 - Width (m) 0.2m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 800
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0171
Packaging 3 - Weight (kg) 4.5384kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.17m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 38400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.123
Packaging 4 - Weight (kg) 238.997kg
Packaging 4 - Width (m) 0.8m
Weight 0.2651kg
ETIM 5.0 EC001288
ETIM 6.0 EC001288
UNSPSC Key 39121703
