Cable label, self laminating, Refill packs, green/transparent, manual marking, 12.70x12.70mm, H2=38.10mm, 200pcs.
Art.-No. 550-14018
| RO201REF-1401-CL/GN
|
Details

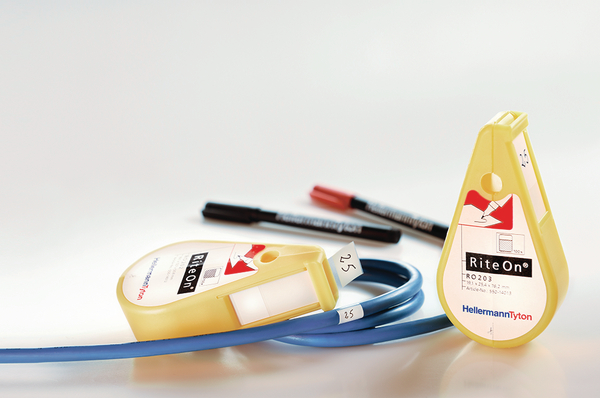

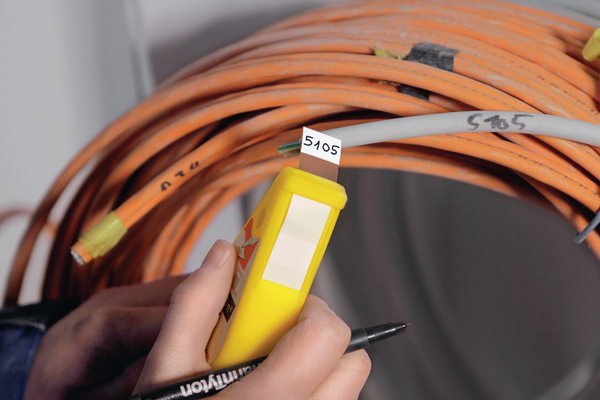

- Palm sized hand held self-laminating label dispenser
- Easy to write on and dispense labels
- Wide range of wire diameters covered as standard
- Ideal for low volume maintenance and repair work
- Write text with specially formulated fast-drying ink T82 pens
Request your individual offer now
Request quote
More products in this product group:

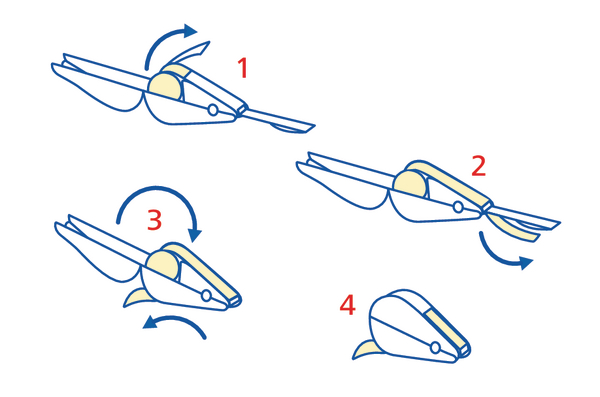

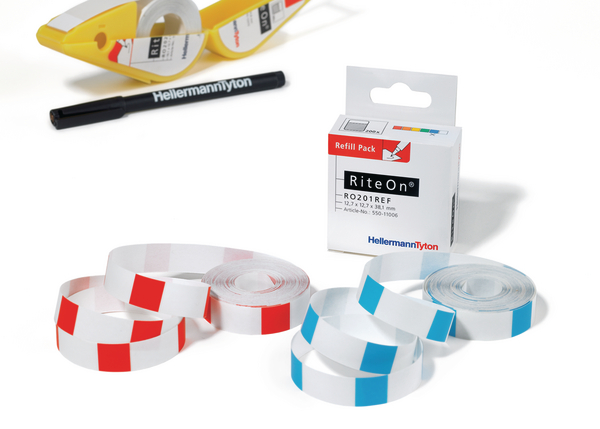

Application | Refill packs are available with label areas in 6 different colours that will suit most applications. Refilling is simplicity itself into the RiteOn dispenser. |
Application Method | The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance. |
Chem. Material Properties | Resistant to water, oil and many solvents. |
Colour | Green (GN), Transparent (CL) |
Colour Marking Field | Green (GN) |

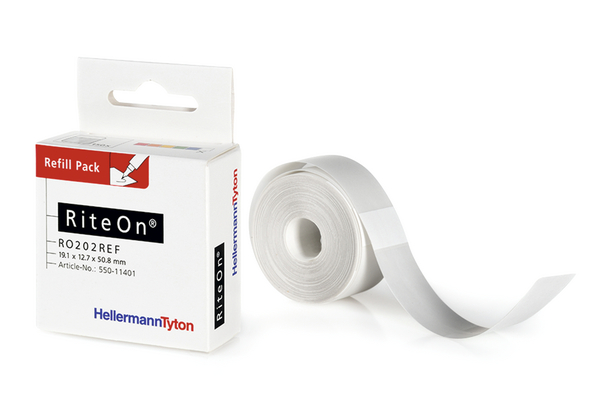

Description | Refill pack |
Fixation Method | Pasting / Stick |
Local order number | RO201REF-1401-GN |
Material | Type 1401, Vinyl (1401) |
PART DESCRIPTION | RO201REF-1401-CL/GN |
Pack Cont. | 200pcs. |
Package Content packed in | Reel |
Product Family | RiteOn, refill pack, material 1401 for dispenser |
Product Group | Self-laminating labels, manual marking |
Self adhesive (Yes/No) | Yes |
Short Description | Self-laminating labels, manual marking 12.7x38.1 mm green |
Type | RO201REF |
Variant | Roller form |
With label space | Yes |
Bundle Diameter max (metric) | 8.10mm |
Bundle ∅ | 4.00-8.10mm |
Bundle ∅ min. | 4.00mm |

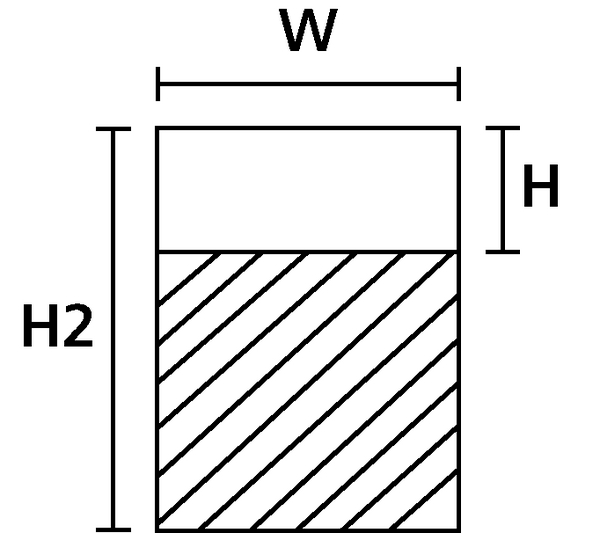

Height (H) | 12.70mm |
Height (H2) | 38.10mm |
Outside ∅ max (OD max.) | 8.1mm |
Outside ∅ min. (OD min.) | 4.0mm |
Print Method | manual marking |
Thickness of Adhesive (TA) nom. | 27.5µm |
Thickness of Foil | 80 |
Thickness of foil test method | ASTM D3652-83 |
Weight/Unit | 0.0001kg |
Width (W) | 12.70mm |
Width of Liner (WL) | 12.70mm |
Adhesive | Acrylic |
Curing Temperature | from +10 °C |
ELV compliant Dir. Art. 4 (2) | YES |
Halogen-free | No |
Hazardous Goods | No |
Initial tack | 110g/cm² |
Initial tack | ASTM D2979-71 |
Operating Temperature | -40 °C to +80 °C |
Peel strength | 550 N/m |
Peel strength test method | PSTC 7 |
Pre-Printed | No |
ROHS compliant | Yes |
Shear strength | 120h |
Shear strength test method | FINAT FTM 7 |
Shelf Life | Minimum 1 year upon receipt / maximal 2 years after production date. |
Specifications |
|
|
Country of Origin | DE |
Customs Number | 39199080 |
GTIN-13 / EAN | 4031026294070 |
Labels per Row | 1pc. |
Packaging 1 - Height (m) | 0.083m |
Packaging 1 - Length (m) | 0.058m |
Packaging 1 - Qty | 200 |
Packaging 1 - Type | Bag |
Packaging 1 - Volume (m³) | 0.00013m³ |
Packaging 1 - Weight (kg) | 0.026kg |
Packaging 1 - Width (m) | 0.027m |
Storage Temperature | +21 °C |
Storage conditions | 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness. |
