10/12/2024

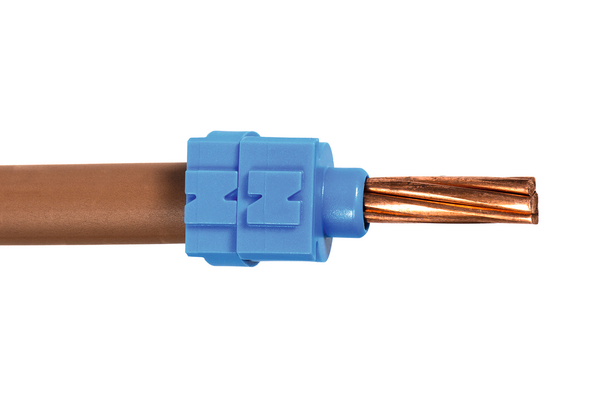

Cable marker, moulded "N", ∅16.0-25.0mm, blue, bag=1000pcs.
Art.-No. 539-00003 | SMCLIPN-PA66-BU Details

  • Safe Installation
  • BS7671 Compliance
  • Quick and Clean Installation
  • No Waste Disposal
  • Provides Revenue Protection
  • Fits Range of SmartMeters
  • Adaptable and Flexible in Use
  • Clear Integral Identification
  • Colour Coded
  • Captive When Fitted
  • Low Profile
  • Adaptable to Multiphase
  • No Application Tools
Show more

Request your individual offer now

Application As the installation of SmartMeters are rolled out across the UK and Europe it is ever more critical for installers to have a quick, safe and uniform identification method for cables. With a built in revenue protection system the SmartMeter Clips and Collars save time and cost compared to alternative methods
Colour Blue (BU)
Description As the installation of SmartMeters are rolled out across the UK and Europe it is ever more critical for installers to have a quick, safe and uniform identification method for cables. With a built in revenue protection system the SmartMeter Clips and Collars save time and cost compared to alternative methods.
Marking Text N
Material Polyamide 6.6 (PA66)
PART DESCRIPTION SMCLIPN-PA66-BU
Pack Cont. 1000pcs.
Package Content packed in Bag
Product Family SmartMeter Clips and Collars
Product Group SmartMeter Cable Identification
Short Description SmartMeter Clips and Collars
Type SMCLIPN
Bundle Diameter max (metric) 25.0mm
Bundle ∅ 16.0-25.0mm
Bundle ∅ min. 16.0mm
Print Method moulded
Pre-Printed Yes
ROHS compliant Yes
Specifications
Country of Origin GB
GTIN-13 / EAN 5022660344688
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Width (m) 0.39m
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
