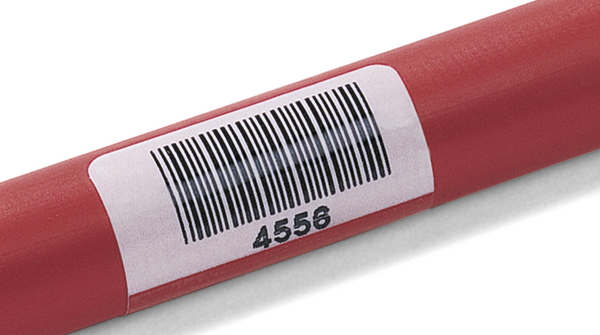

Cable label, self laminating, white/transparent, laser print, 25.40x38.10mm, H2=139.70mm, 500pcs.
Art.-No. 594-13976 | TAG139LA4-1105-CL/WH Details

  • High-quality self-laminating labels
  • Suitable for marking of wires and cables
  • Laminating function gives excellent protection against humidity and mechanical abrasion
  • Rounded edge design gives additional bonding strength
  • Thicker material (50 micron) for longer labels
  • Simple and efficient label design and printing with TagPrint Pro labelling software
  • Templates available from www.HellermannTyton.com/templates for those wishing to use MS Word
  • Clear protective box to ensures labels stay as good as new
Show more

Request your individual offer now

Application These labels are ideal for marking cables of a larger diameter. The type 1105 self-laminating labels exceed the length of 100 mm and are made of a thicker material than type 1104. Because of its greater material rigidity these labels can be easily removed from the sheet and applied by hand to larger cables and hoses.
Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties Excellent resistance to alcohol, gasoline, cleaning solvents, butanol, ethyl and Butylcellosolve solvent, battery acid.
Colour White (WH), Transparent (CL)
Colour Marking Field White (WH)
Fixation Method Stick
Local order number TAG139LA4-1105
Material Type 1105, Polyester, white transparent, self-laminating (1105)
PART DESCRIPTION TAG139LA4-1105-CL/WH
Pack Cont. 500pcs.
Package Content packed in Pack
Paper Format A4
Product Family Material 1105 (White-Clear)
Product Group Self-laminating labels, laser
Self adhesive (Yes/No) Yes
Short Description Self-laminating labels, laser 38.10x25.40x139.70 mm white-clear
Type TAG139LA4
Variant Adhesive label
With label space Yes
Bundle Diameter max (metric) 36.40mm
Bundle ∅ 18.20-36.40mm
Bundle ∅ min. 18.20mm
Height (H) 25.40mm
Height (H2) 139.70mm
Outside ∅ max (OD max.) 36.40mm
Outside ∅ min. (OD min.) 18.2mm
Print Method laser print
Print Method (Alternative) laser beam print
Thickness (T) 23.0µm
Thickness of Adhesive (TA) nom. 22.5µm
Thickness of Foil 50
Thickness of foil test method TAPPI 411
VR 143.90mm
Weight/Unit 0.001477kg
Width (W) 38.10mm
Width of Liner (WL) 210.00mm
Adhesive Acrylic
Curing Temperature from +2 °C
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Initial tack 280g/cm²
Initial tack ASTM D2979-71
Operating Temperature -40 °C to +150 °C
Peel strength 100 h
Peel strength test method FINAT FTM 8
Pre-Printed No
ROHS compliant Yes
Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
Country of Origin DE
Customs Number 39199080
GTIN-13 / EAN 4031026294469
Labels per Row 5pcs.
Labels per Sheet 10pcs.
Packaging 1 - Height (m) 0.015m
Packaging 1 - Length (m) 0.315m
Packaging 1 - Qty 500
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.00113
Packaging 1 - Weight (kg) 0.738kg
Packaging 1 - Width (m) 0.24m
Sheets per Pack 50pcs.
Storage Temperature +21 °C
Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
