Pre-printed Cable Markers : WIC Tool
Clip On Cable Marker 2-2.8mm black Imprint WIC Tool, Article number: 561-00001
Features
- Fast and easy to use pre-printed nylon snap-on marker
- Ideal where termination is completed or for maintenance and repair
- Markers lock together to give perfect text alignment
- Vibration resistant markers, WIC markers lock onto wire and cable tightly

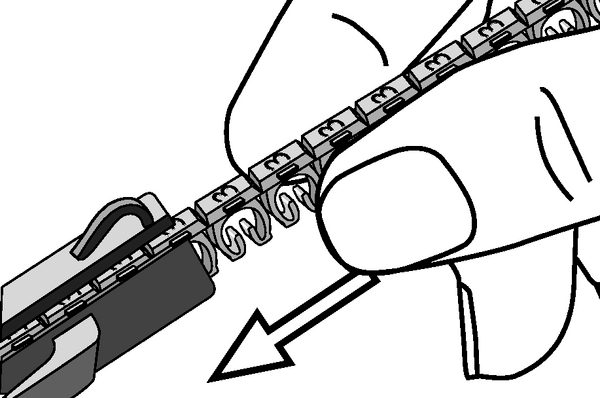

- WIC tool holds 20 WIC marker in all three sizes
- Gripping system locks markers onto wire and resists rotation
- Available in Yellow, White and international resistor colour code
- Popular 2 digit markings such as L1, L2, L3, PE are available in Yellow or colour code
- Dispenser colour denotes marker size: WIC0 (GN), WIC1 (RD), WIC2 (BU), WIC3 (YE)
Certifications & Approvals
Application

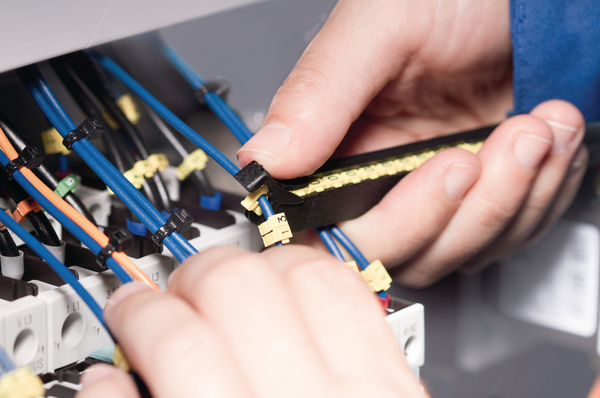

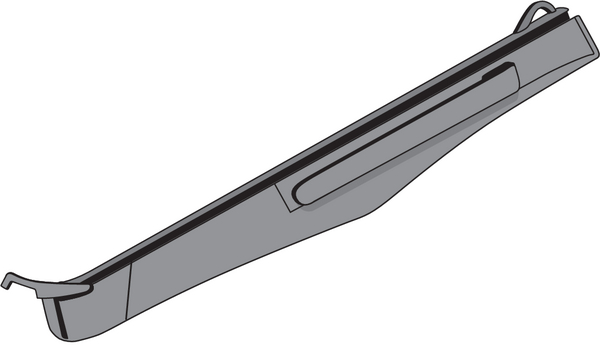

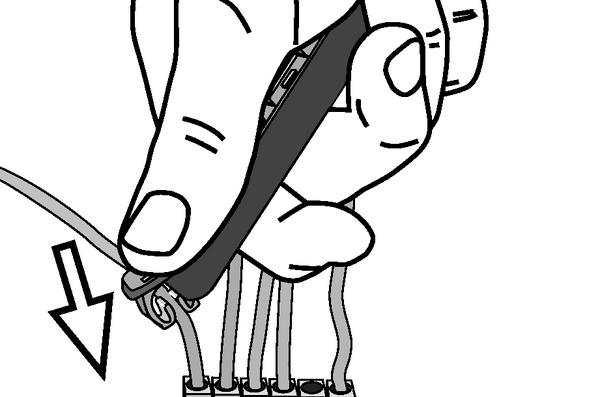

The WIC Tool is designed to aid the application of WIC Markers
WIC, snap on is suitable for following markets and industries
More products in this product group
Pre-printed Cable Markers >| Colour | Black (BK) |
| Description | Applicator |
| Fixation Method | Others |
| Mounting method | Others |
| Pack Cont. | 5pcs. |
| Package Quantity per | Box |
| PART DESCRIPTION | WIC Tool-PA6GF15-BK |
| Product Family | WIC, snap on |
| Product Group | Pre-printed Cable Markers |
| Short Description | Clip On Cable Marker 2-2.8mm black Imprint WIC Tool |
| Type | WICTOOL |
| Variant | Other |
| With label space | No |
| Print Method | Inkjet |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V0 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6, glass-fibre reinforced (PA6GF15%) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications |
|
| Specifications | EN 60062, IEC 304 |
| EAN / GTIN | 4031026210766 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.141m |
| Packaging 1 - Qty | 5 |
| Packaging 1 - Type | Pack |
| Packaging 1 - Volume (m³) | 0.0002m³ |
| Packaging 1 - Weight (kg) | 0.055kg |
| Packaging 1 - Width (m) | 0.047m |
| Packaging 2 - Height (m) | 0.063m |
| Packaging 2 - Length (m) | 0.188m |
| Packaging 2 - Qty | 5 |
| Packaging 2 - Type | Carton |
| Packaging 2 - Volume (m³) | 0.0007m³ |
| Packaging 2 - Weight (kg) | 0.081kg |
| Packaging 2 - Width (m) | 0.055m |
| Packaging 3 - Height (m) | 0.27m |
| Packaging 3 - Length (m) | 0.6m |
| Packaging 3 - Qty | 270 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0648m³ |
| Packaging 3 - Weight (kg) | 7.674kg |
| Packaging 3 - Width (m) | 0.4m |
| Weight | 0.055kg |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 Key | EC001530 |
