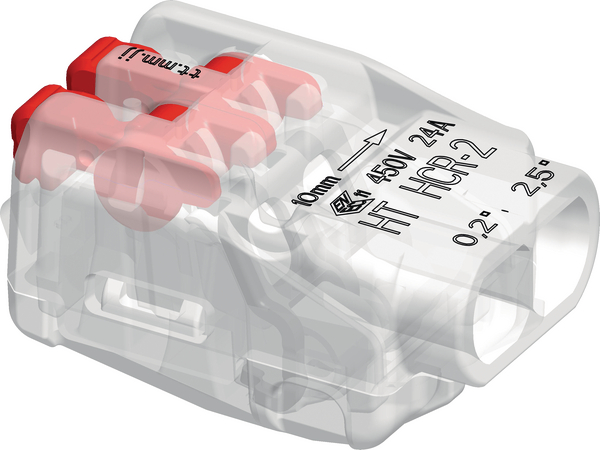

Push-in wire connector, 2 conductors, 0.2 to 2.5 mm² all types of wire, transparent, 100pcs.
Art.-No. 148-90043 | HCR-2-PC-CL Details

  • Universal push-in wire connector for solid, stranded and fine-stranded wires
  • Solid wires simply push-in. No need to open lever
  • Compact size connector
  • Wire clamping range: 0.2 - 2.5 mm²
  • Separate voltage test entry on the bottom
  • Fully re-useable. No screwdriver required
  • For proper fixing that can be visually checked through transparent housing
  • Safe application, installation and maintenance
Show more

Request your individual offer now

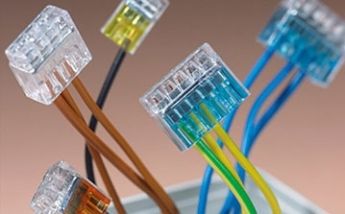

Application The HelaCon Releasable connectors are used for all types of wire to connect cable and conductors in the field of electrical installation. The connectors can be used in all kinds of junction boxes either on-wall or flush-mounted. HelaCon offers the best possible solution when convenient processing and maximum safety is required.
Colour Transparent (CL)
Local order number HCR-2-PC-100
Material Polycarbonate (PC)
Number of Conductors 2
PART DESCRIPTION HCR-2-PC-CL
Pack Cont. 100pcs.
Package Content packed in Box
Product Family HelaCon Releasable
Product Group Connectors - For all Types of Wire
Short Description HelaCon Releasable wire connector for all types of wire.
Suitable for flexible core (Yes/No) Yes
Suitable for multi wire core (Yes/No) Yes
Suitable for solid core (Yes/No) Yes
Type HCR-2
Height (H) 11.7mm
Length (L) 21.1mm
Max Current 24A
Max Voltage 450V
Stripping Length 10mm
Weight/Unit 0.002kg
Width (W) 11.9mm
Wire Range (VDE) 0.2 to 2.5 mm² all types of wire
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Operating Temperature -30 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications 2014/35/EU, csa C22.2 No. 188-13, EN 60998-1:2005-05-01, EN 60998-2-2:2005-05-01, UL 486C
UL OCD link Link
UL-File Number E316080
Country of Origin AT
Customs Number 85369010
GTIN-13 / EAN 4031026547954
Packaging 1 - Height (m) 0.054m
Packaging 1 - Length (m) 0.098m
Packaging 1 - Qty 100
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.00052
Packaging 1 - Weight (kg) 0.222kg
Packaging 1 - Width (m) 0.098m
Packaging 3 - Height (m) 0.202m
Packaging 3 - Length (m) 0.291m
Packaging 3 - Qty 2000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0118
Packaging 3 - Weight (kg) 4.94kg
Packaging 3 - Width (m) 0.201m
Packaging 4 - Height (m) 1.154m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.108
Packaging 4 - Weight (kg) 317.4kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000446
ETIM 8.0 Key EC000446
ETIM 9.0 Key EC000446
