Push-in wire connector, 3 conductors, 0.2 to 4.0 mm² all types of wire, transparent, 8pcs.
Art.-No. 148-90063 | HCRN-3-Blister-PC-CL Details

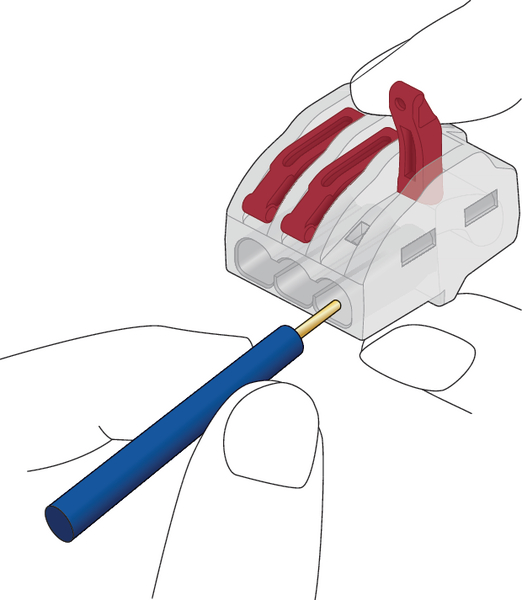

  • Universal push-in wire connector for solid, stranded and fine-stranded wires
  • Compact size connector
  • Wire clamping range: 0.2 - 4.0 mm²

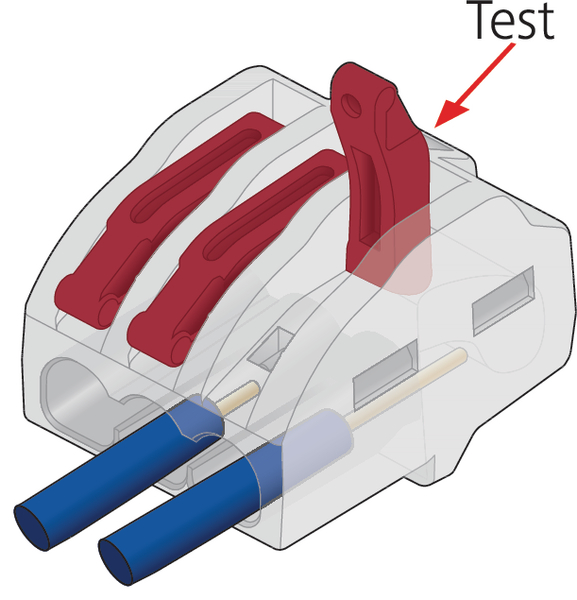

  • Separate voltage test entry on the top

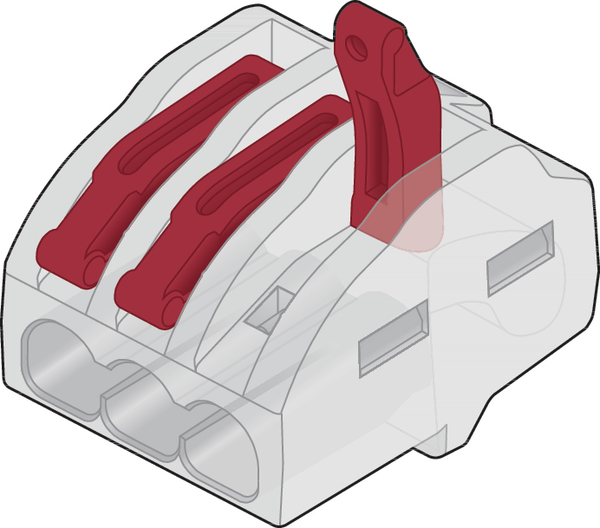

  • For proper fixing that can be visually checked through transparent housing
  • Safe application, installation and maintenance
Show more

Request your individual offer now

Application The HelaCon Plus Releasable connectors are used for all types of wire to connect cable and conductors in the field of electrical installation. The connectors can be used in all kinds of junction boxes either on-wall or flush-mounted. HelaCon offers the best possible solution when convenient processing and maximum safety is required.
Colour Transparent (CL)
Material Polycarbonate (PC)
Number of Conductors 3
PART DESCRIPTION HCRN-3-Blister-PC-CL

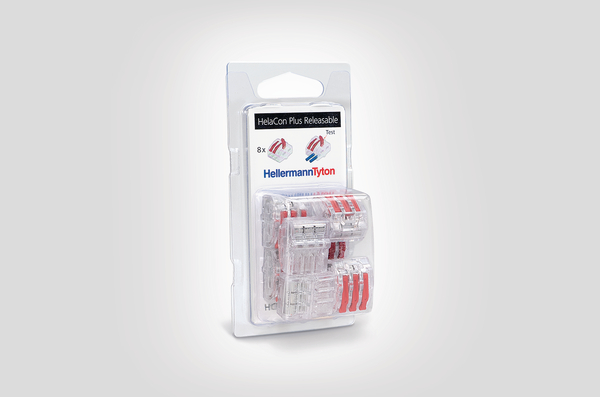

Pack Cont. 8pcs.
Package Content packed in Box
Product Family HelaCon Plus Releasable
Product Group Connectors - For all Types of Wire
Short Description HelaCon Plus Releasable wire connector for all types of wire.
Suitable for flexible core (Yes/No) Yes
Suitable for multi wire core (Yes/No) Yes
Suitable for solid core (Yes/No) Yes
Type HCRN-3-Blister
Height (H) 14.0mm
Length (L) 17.0mm
Max Current 32A
Max Voltage 450V
Stripping Length 10mm
Weight/Unit 0.0019kg
Width (W) 20.5mm
Wire Range (VDE) 0.2 to 4.0 mm² all types of wire
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Operating Temperature -30 °C to +85 °C
ROHS compliant Yes
Specifications
Specifications UL 486C
UL Listed (US and Canada) Yes
UL OCD link Link Link Link Link
UL-File Number E316080
Country of Origin CN
Customs Number 85369010
GTIN-13 / EAN 4031026657905
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.105m
Packaging 1 - Qty 8
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.0002
Packaging 1 - Weight (kg) 0.0152kg
Packaging 1 - Width (m) 0.055m
Packaging 3 - Height (m) 0.32m
Packaging 3 - Length (m) 0.415m
Packaging 3 - Qty 1440
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0325
Packaging 3 - Weight (kg) 3.236kg
Packaging 3 - Width (m) 0.245m
Packaging 4 - Height (m) 0.96m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 25920
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.922
Packaging 4 - Weight (kg) 79.248kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000446
ETIM 8.0 Key EC000446
ETIM 9.0 Key EC000446
UNSPSC Key 39131707
