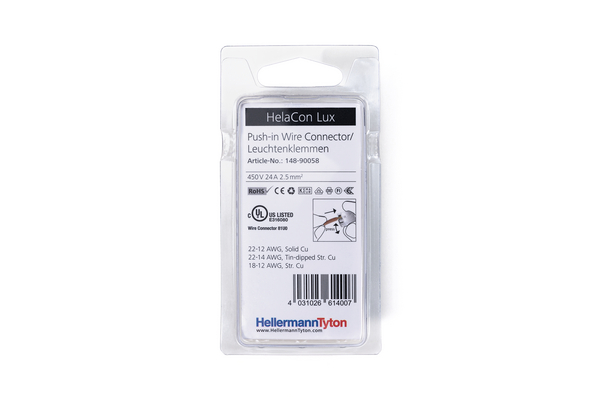

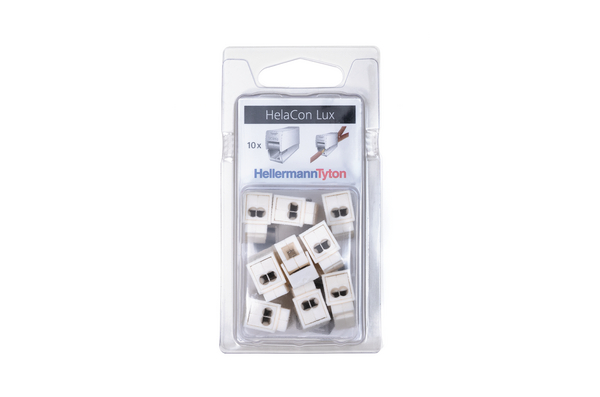

Push-in wire connector, 3 conductors, 0.5 mm² - 2.5mm², white, 10pcs.
Art.-No. 148-90058 | HECL-2/1-Blister-PA66-WH Details

  • Best suitable to connect solid with flexible wire
  • Combines push-in connector with lock/unlock spring mechanism
  • For fine-stranded conductors at lighting input
  • Use with typical voltage current of 450 V / 24 A
  • Either one or two inputs for solid conductor on installation side
  • Very flexible application
  • Tool-free application for easy, time-saving, safe connection
  • Especially for overhead work and when wires are difficult to access
Show more

Request your individual offer now

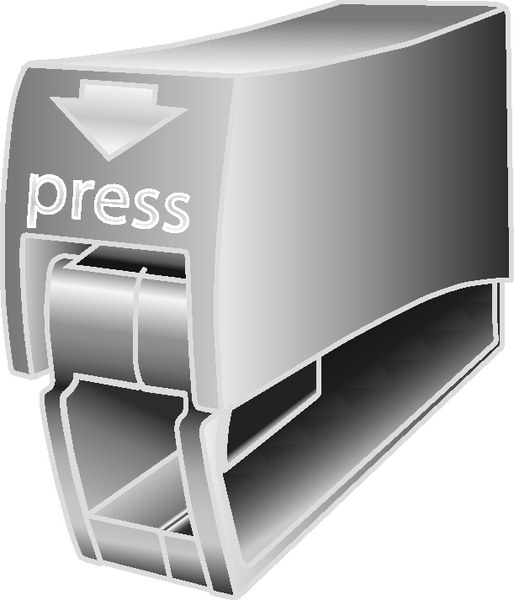

Application A typical application is lighting installation, where the solid conductor from concealed cabling has to be connected to a flexible conductor for lighting. The 2/1 variant allows the looping through of the supply lines for additional devices. The conductor on the output/lighting side can easily be inserted by pressing the locking mechanism and can be released in the same way at any time. The lighting side can carry any kind of conductor and makes HelaCon Lux connectors also useful to connect devices that carry flexible connecting cables like control devices e.g. for blinds, fans and other drives.
Colour White (WH)
Local order number HECL-2/1-PA66-BL
Material Polyamide 6.6 (PA66)
Number of Conductors 3
PART DESCRIPTION HECL-2/1-Blister-PA66-WH
Pack Cont. 10pcs.
Package Content packed in Box
Product Family HelaCon Lux
Product Group Connectors - For Lighting Installation
Short Description Push-in Wire Connector 3-pole 0.5 - 2.5 mm² white
Type HECL-2/1-Blister
Height (H) 15.8mm
Length (L) 20.8mm
Max Current 24A
Max Voltage 450V
Max. cable cross section 2.5mm²
Min. cable cross section (installation side) 0.75mm²
Min. cable cross section (luminaire side) 0.5mm²
Stripping Length 11mm
Weight/Unit 0.002058kg
Width (W) 9.5mm
Wire Range (VDE) 0.5 mm² - 2.5mm²
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -5 °C to +100 °C
ROHS compliant Yes
Specifications
Specifications CEBEC, cULus, EN 60998-2-2:1993, ENEC, FIMKO, VDE
Country of Origin CN
Customs Number 85369010
GTIN-13 / EAN 4031026614007
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.11m
Packaging 1 - Qty 10
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.00021
Packaging 1 - Weight (kg) 0.03158kg
Packaging 1 - Width (m) 0.055m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 1800
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 6.5244kg
Packaging 2 - Width (m) 0.267m
Packaging 3 - Height (m) 0.32m
Packaging 3 - Length (m) 0.37m
Packaging 3 - Qty 1800
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.029
Packaging 3 - Weight (kg) 0.342kg
Packaging 3 - Width (m) 0.245m
Packaging 4 - Height (m) 1.1m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48600
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.056
Packaging 4 - Weight (kg) 30.234kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000447
ETIM 8.0 Key EC000446
ETIM 9.0 Key EC000446
