28/10/2025

Wiring duct cutter, red, 1pc.
Art.-No. 182-96000 | 4FTOOL-MET/PL-RD |

Copied

    • Multi-functional tool
    • Cuts walls of wiring ducts or complete wiring ducts free of burrs
    • Angled cuts can be made with a mitre insert
    • 90° profile insert enables box cuts of up to 25 x 45 mm
    • Round profile inserts 16/19 mm and 25 mm can cut both hard and flexible plastic tubing free of burrs

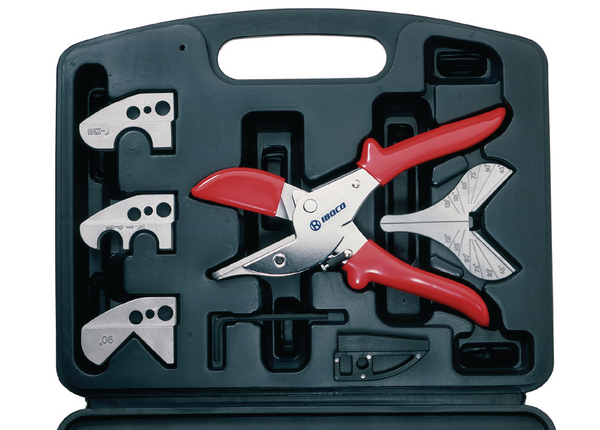

    • Notching pliers and all accessory inserts are carried in a robust case
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application With the 4FTOOL universal scissors, wiring ducts can be cleanly cut and processed.
    Colour Red (RD)
    For Wiring Ducts T1, T1-F, T1-E, T1-EF, HTWD-HF, HTWD-DIN
    Material Metal (MET), Plastic (PL)
    PART DESCRIPTION 4FTOOL-MET/PL-RD
    Package Content 1pc.
    Package Content packed in pcs.
    Short Description 4F Notching Pliers and Accessories
    Type 4FTOOL
    Variant Duct shears
    Weight/Unit 1.2kg
    Length (L) 220mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin TW
    Customs Number 82130000
    GTIN-13 / EAN 4031026219806
    Packaging 1 - Height (m) 0.25m
    Packaging 1 - Length (m) 0.08m
    Packaging 1 - Qty 1
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.006m³
    Packaging 1 - Weight (kg) 1.200001kg
    Packaging 1 - Width (m) 0.3m
    ETIM 7.0 Key EC000160
    ETIM 8.0 Key EC000160
    ETIM 9.0 Key EC000160

    Wiring ducts and accessories from HelaDuct: optimum protection for cables and fitters.

    Discover the advantages of HelaDuct wiring ducts system solutions with its special space-saving shapes: these unique wiring ducts are designed for height and give you more lateral space. They come with blunted edges that protect the cable insulation and make them safer to work with during installation and maintenance. HelaDuct products are used in switch cabinets and switching stations and are very well suited to cables with small cross sections.
