For fixing cable ties to base of ducts HTWD-CTH

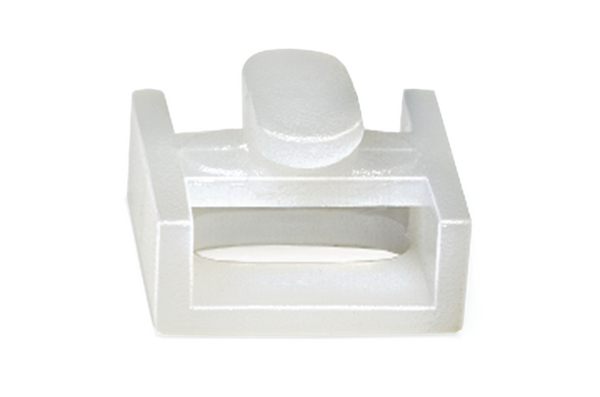

HelaDuct HTWD-CTH cable tie holder, Article number: 181-45029
Features
- Holds all components firmly in place
- Cable tie easily laced through HTWD-CTH
- Anchor of mount remains inside raised mounting point and does not protrude below surface of duct base
Certifications & Approvals
Application

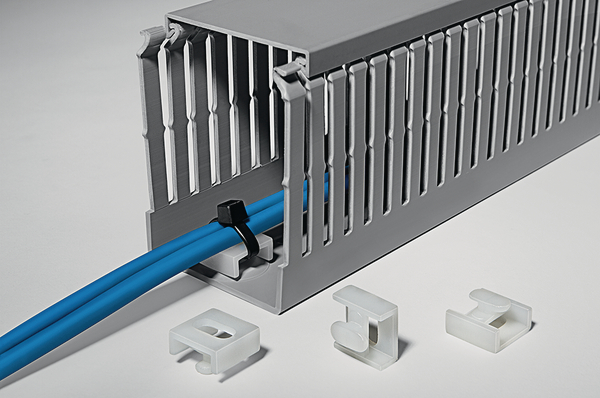

HelaDuct HTWD-CTH is used to anchor a cable tie securely to the base of a duct.
HelaDuct HTWD-CTH cable tie holder is suitable for following markets and industries
-
![Electrical Installation]()
Electrical Installation
-
![Panel Building]()
Panel Building
-
![Electronics Industry]()
Electronics Industry
More products in this product group
For fixing cable ties to base of ducts >| Colour | White (WH) |
| Description Short (BMEcat) (max. 150 characters) | Cable tie socket, PA6, white |
| Fixation Method | Plug in |
| For Wiring Ducts | HTWD-PN, HTWD-PW |
| GLOBAL PART DESCRIPTION | HTWD-CTH-PA6-WH |
| Pack Cont. | 50pcs. |
| Package Quantity per | pcs. |
| Product Family | HelaDuct HTWD-CTH cable tie holder |
| Product Group | For fixing cable ties to base of ducts |
| Variant | Mounting clip |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6 (PA6) |
| Operating Temperature - °C | -40 °C to +80 °C |
| Specifications |
|
| EAN / GTIN | 4031026567273 |
| Packaging 1 - Height (m) | 0.093m |
| Packaging 1 - Length (m) | 0.202m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00502m³ |
| Packaging 1 - Weight (kg) | 0.1kg |
| Packaging 1 - Width (m) | 0.267m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 9350 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 39.7kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.1kg |
| ETIM 6.0 | EC000071 |
