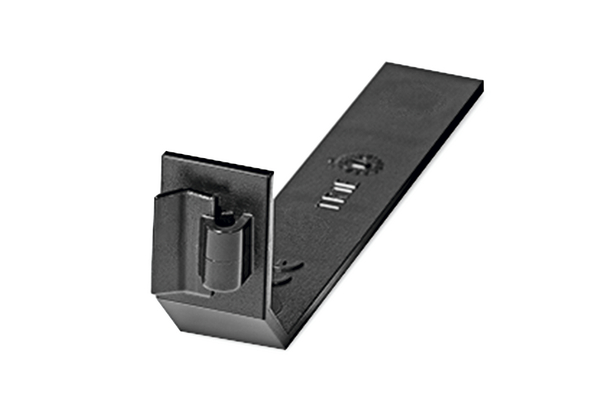

Accessory, HelaDuct, black, 100pcs. (HTWD-NFWR)
Art.-No. 181-10020 | HTWD-NFWR-ABS-BK Details

  • Prevents wires from falling out even when vertical routed
  • Easily inserted onto single fingers of duct
  • Height can be freely adjusted
  • Does not block insertion of wirings into slots

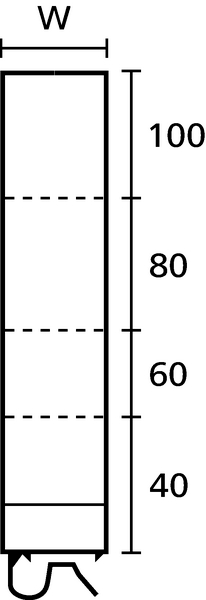

  • One retainer for all duct widths: length of retainer can be shortened at break-off points to duct width
  • HTWD-NFWR is compatible with HelaDuct HTWD-PN and HTWD-HF (metric sizes)
  • HTWD-WFWR is compatible with HelaDuct HTWD-PW ducts
Show more

Request your individual offer now

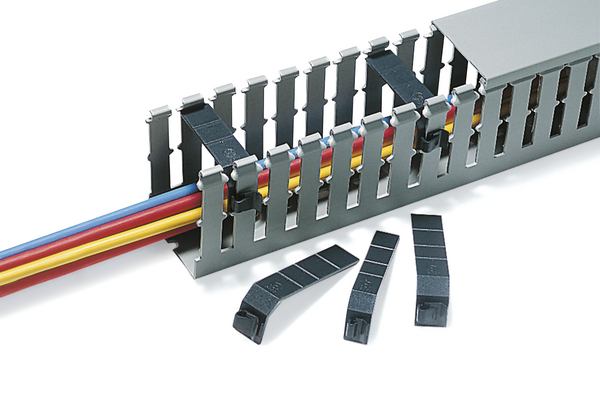

Application The Narrow Finger and Wide Finger Wire Retainers HTWD-NFWR and HTWD-WFWR are easily attached to HelaDuct wiring duct fingers to hold wires securely in place during installation and when the cover is removed.
Adjustable to duct width (Yes/No) Yes
Colour Black (BK)
Current leak stable Yes/No Yes
For Wiring Ducts HTWD-PN, HTWD-HF
Material Acrylonitrile Butadiene Styrene (ABS)
PART DESCRIPTION HTWD-NFWR-ABS-BK
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family HelaDuct HTWD-NFWR and HTWD-WFWR Wire Retainers
Product Group For mounting to duct fingers
Short Description Wire securing clamp 100x100 mm, PA6, black
Type HTWD-NFWR
For cable duct height 100mm
For cable duct width 100mm
Weight/Unit 0.0068kg
Width (W) 14mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +80 °C
ROHS compliant Yes
Specifications
Country of Origin IT
Customs Number 39269097
GTIN-13 / EAN 4031026566931
Packaging 1 - Height (m) 0.085m
Packaging 1 - Length (m) 0.162m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00292
Packaging 1 - Weight (kg) 0.680001kg
Packaging 1 - Width (m) 0.212m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 30000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 225.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC001018
ETIM 8.0 Key EC001018
ETIM 9.0 Key EC001018
UNSPSC Key 39131712
