For installing wiring ducts into fixing holes HTWD-R6

HelaDuct HTWD-R4 and HTWD-R6 rivets, Article number: 181-42600

Features

  • Very good mechanical properties
  • Good resistance to vibration
  • Easily and rapidly applied with HTWD-RT4 and HTWD-RT6 rivet tools

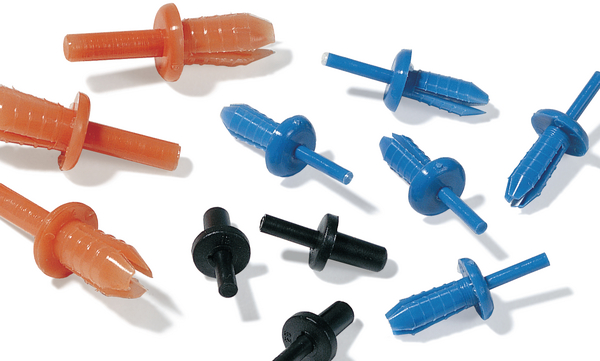

  • Colour-coded for easy identification for use with rivet tools

Certifications & Approvals

Application

HTWD-R4 and HTWD-R6 are used to rapidly mount and secure wiring ducts into fixing holes without the use of screws.

HelaDuct HTWD-R4 and HTWD-R6 rivets is suitable for following markets and industries

Application Tool HTWD-RT6
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Wiring duct rivet, 5.0 - 5.5 mm, PA6, black
GLOBAL PART DESCRIPTION HTWD-R6-PA6-BK
Pack Cont. 250pcs.
Package Quantity per pcs.
Product Family HelaDuct HTWD-R4 and HTWD-R6 rivets
Product Group For installing wiring ducts into fixing holes

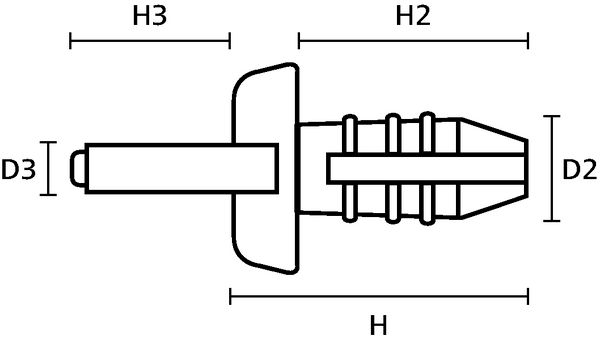

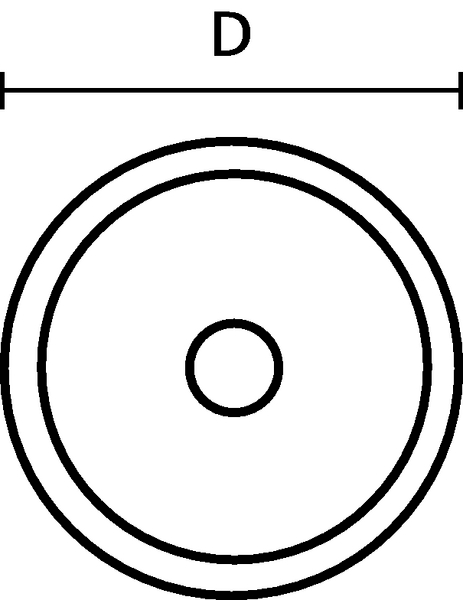

Diameter (D) 11mm
for Hole ∅ (FH) 5.0 - 5.5 mm
Height (H) 16.0mm
Height (H2) 12.7mm
Height (H3) 13.0mm
∅ (D2) 6.0mm
∅ (D3) 3.0
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Material Polyamide 6 (PA6)
Operating Temperature - °C -40 °C to +80 °C
Specifications
EAN / GTIN 4031026126913
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.08m
Packaging 1 - Qty 250
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00072
Packaging 1 - Weight (kg) 0.175kg
Packaging 1 - Width (m) 0.1m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 180000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 147.0kg
Packaging 4 - Width (m) 0.8m
Weight 0.175kg
ETIM 5.0 EC002450
ETIM 6.0 EC002450
