For mounting ducts to DIN rails HTWD-RB

HelaDuct HTWD-RB Rail Mounting Blocks, Article number: 181-45130

Features

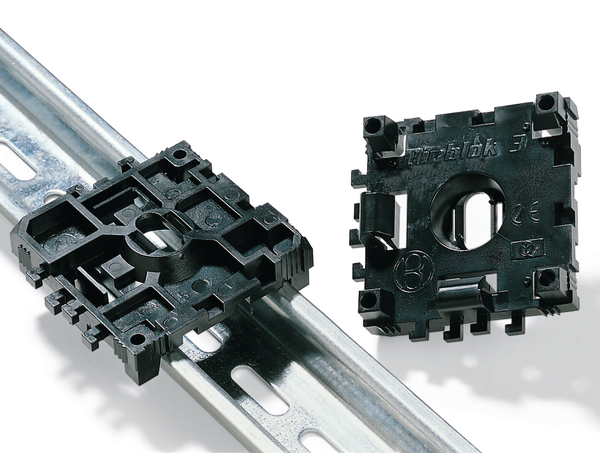

  • Easily snapped onto DIN rail

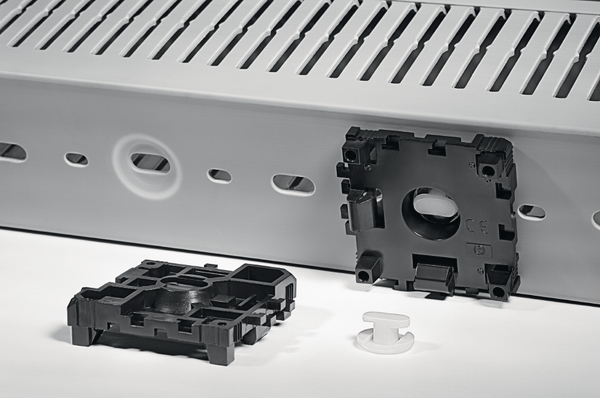

  • Rapidly fixed to wiring duct with a HTWD-TL mount
  • Assembly direction of wiring duct can be either parallel or perpendicular to DIN rail

Certifications & Approvals

Application

HelaDuct HTWD-RB is used to fix wiring ducts firmly to DIN rail.

HelaDuct HTWD-RB Rail Mounting Blocks is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Fixing block for Mounting Rale, 50x50x14 mm, PA66, black
Fixation Method Plug-in mounting
For DIN Rail DELTA 3 up to 3AF
GLOBAL PART DESCRIPTION HTWD-RB-PA66-BK
Pack Cont. 25pcs.
Package Quantity per pcs.
Product Family HelaDuct HTWD-RB Rail Mounting Blocks
Product Group For mounting ducts to DIN rails
Variant Other

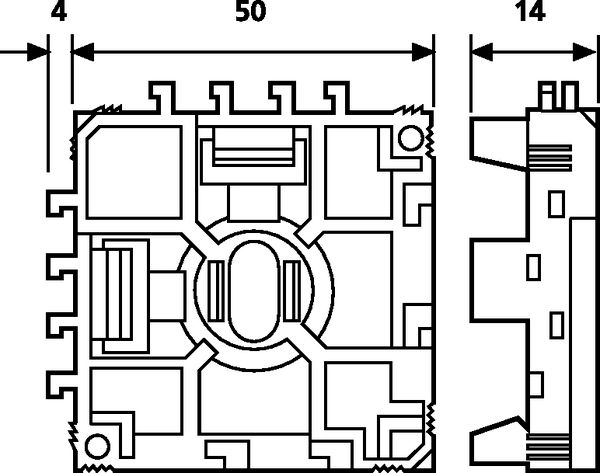

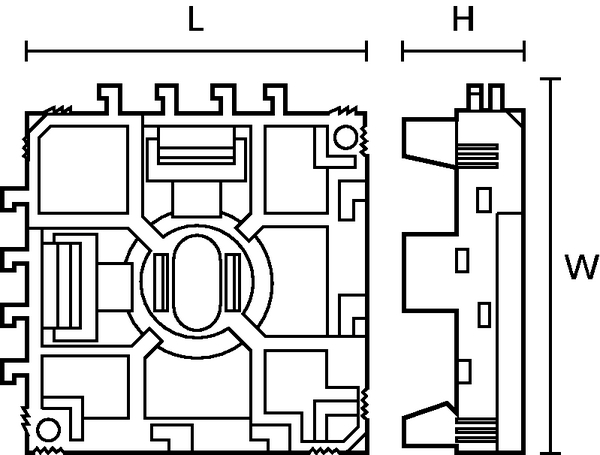

Height (H) 14mm
Length (L) 50mm
Width (W) 50mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +80 °C
Specifications
EAN / GTIN 4031026126999
Packaging 1 - Height (m) 0.174m
Packaging 1 - Length (m) 0.198m
Packaging 1 - Qty 25
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0091
Packaging 1 - Weight (kg) 1.0kg
Packaging 1 - Width (m) 0.264m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 2700
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 129.0kg
Packaging 4 - Width (m) 0.8m
Weight 1.0kg
ETIM 5.0 EC000071
ETIM 6.0 EC000071
