For fastening mounting blocks to base of ducts HTWD-TL

HelaDuct HTWD-TL mounting block fastener, Article number: 181-45019

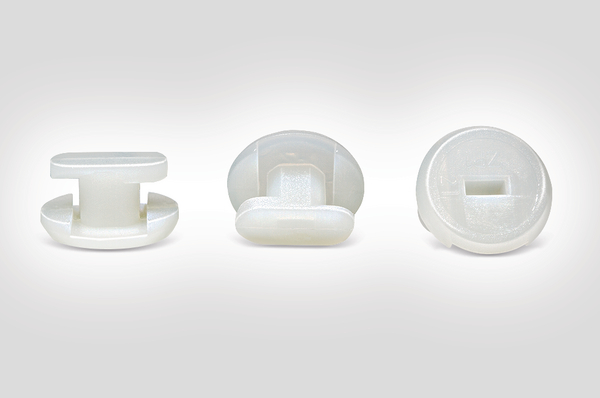

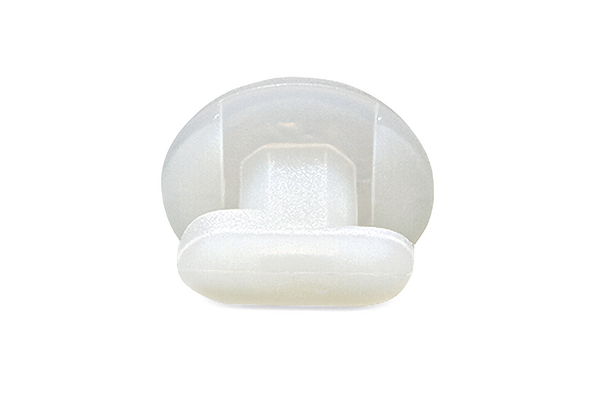

ZP Mounting inserts.

Features

  • Holds all components firmly in place
  • Anchor of mount remains inside raised mounting point and does not protrude below surface of duct base

Certifications & Approvals

Application

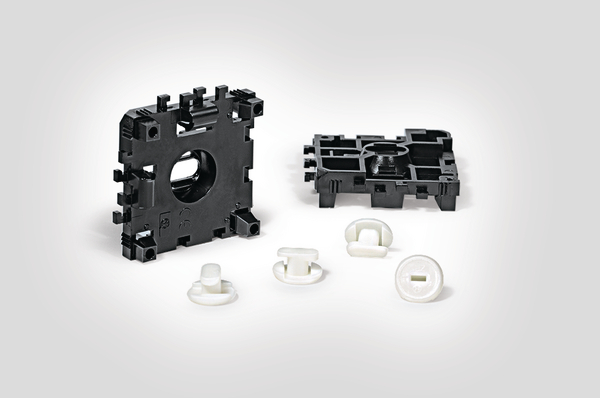

The HTWD-TL is used to fix a HTWD-RB rail mounting block to duct or to fix smaller ducts inside larger ones.

HelaDuct HTWD-TL mounting block fastener is suitable for following markets and industries

Colour White (WH)
Description Short (BMEcat) (max. 150 characters) Mounting insert, PA6, white
Fixation Method Plug in
For Wiring Ducts HTWD-PN, HTWD-PW
GLOBAL PART DESCRIPTION HTWD-TL-PA6-WH
Pack Cont. 100pcs.
Package Quantity per pcs.
Product Family HelaDuct HTWD-TL mounting block fastener
Product Group For fastening mounting blocks to base of ducts
Variant Mounting clip
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Material Polyamide 6 (PA6)
Operating Temperature - °C -40 °C to +80 °C
Specifications
EAN / GTIN 4031026567266
Packaging 1 - Height (m) 0.093m
Packaging 1 - Length (m) 0.202m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00502m³
Packaging 1 - Weight (kg) 0.2kg
Packaging 1 - Width (m) 0.267m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 18700
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 58.4kg
Packaging 4 - Width (m) 0.8m
Weight 0.2kg
ETIM 6.0 EC000071
