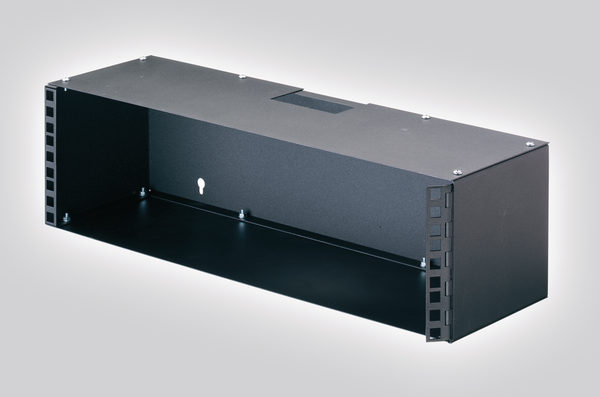

Cable Management Accessories : WB3U/BK

3U Hinged Wall Bracket, Article number: 854-25020

This product is not available anymore.


  • Wall mountable
  • Hinged bracket
  • Cable entry at either top or bottom
  • Accommodates up to 3 1U patch panels
Colour Black (BK)
Description The 3U Hinged Wall Bracket can accommodate up to 3U of patch panels or active equipment and is the ideal solution for installations where there is only a minimum requirement for patching.
Pack Cont. 1pc.
Panel Fixing Method cage nut
Product Family 3U Hinged Wall Bracket
Product Group Cable Management Accessories
Technical Description The wall bracket is wall mountable with hinged mounting on one side to allow easy access to the rear of any patching or active equipment. The wall bracket is made from 2mm mild steel with a black powder coated finish.
Type WB-3U
Depth (D) 152mm
Height (H) 139mm
Width (W) 484mm
Dimensions W x H x D 484 mm x 139 mm x 152 mm
EAN / GTIN 5022660854590
