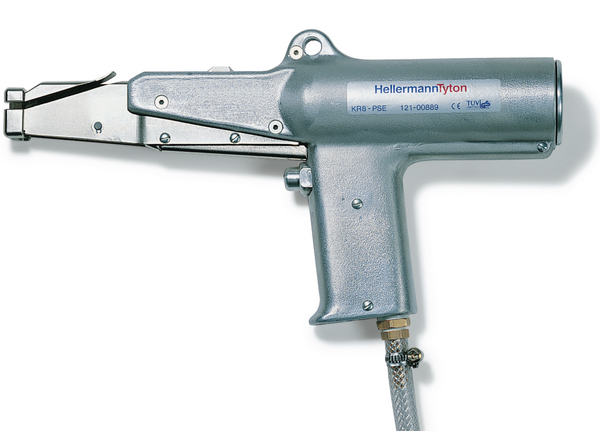

Cable tie tool for 8.0 - 8.0mm, pneumatic, 1.537kg, metal
Art.-No. 121-00889 | KR8PNSE-MET-ML Details

  • Tough metal tool
  • Pneumatic
  • For applying KR-cable ties only
  • For tensioning, fixing and automatically cutting KR-cable ties
  • Tensioning force can be adapted in reliance on air pressure
  • Holding ring for a balancer
Show more

Request your individual offer now

e-Learning
Application Application tool KR8PNSE crimps the glass-fibre-reinforced locking pin of the KR seal and leads to plastic deformation of the tie ends. This produces a very proof permanent connection.
Air Pressure (min.) 3Bar
Colour Metal (ML)
Description KR8PNSE
For Cable Tie Width 8.0 - 8.0mm
For Ties KR8-Series
Local order number KR8PNA.9C
Material Metal (MET)
Operation pneumatic
PART DESCRIPTION KR8PNSE-MET-ML
Pack Cont. 1pc.
Package Content packed in Carton
Product Family KR8PNSE
Product Group Pneumatic tensioning tool for KR8-Series
Short Description Pneumatic Tensioning Tool for kabelrap
Tool property Automatic cut off
Tool suitable cable tie material Plastic
Type KR8PNSE
for Air Pressure min - max 3 - 4 Bar
Air Pressure (max.) 4Bar
Air Supply Non oiled, oiled
Hose Internal Diameter 6.0mm
L x H x W approx. 320 x 210 x 50
Strap Width max. 8.0mm
Strap Width max. (G) (imperial) 0.31"
Tension Setting Adjustable
Weight/Unit 1.537kg
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 84671900
GTIN-13 / EAN 4031026113760
Packaging 1 - Height (m) 0.054m
Packaging 1 - Length (m) 0.361m
Packaging 1 - Qty 1
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00359
Packaging 1 - Weight (kg) 1.794kg
Packaging 1 - Width (m) 0.184m
ETIM 7.0 Key EC000453
ETIM 8.0 Key EC000453
ETIM 9.0 Key EC000453
UNSPSC Key 27112410
