Three-Pronged Pliers for Sleeves and Grommets : NA4/5

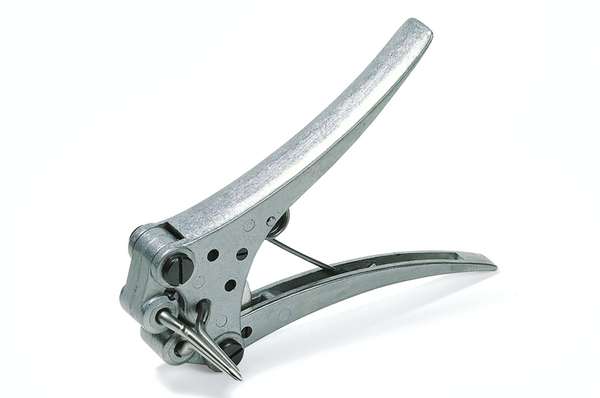

Three-Pronged Plier NA4/5Article number: 621-10405

Add to watchlist
Fast, secure application with the NA three-pronged pliers.
Fast, secure application with the NA three-pronged pliers.

Features

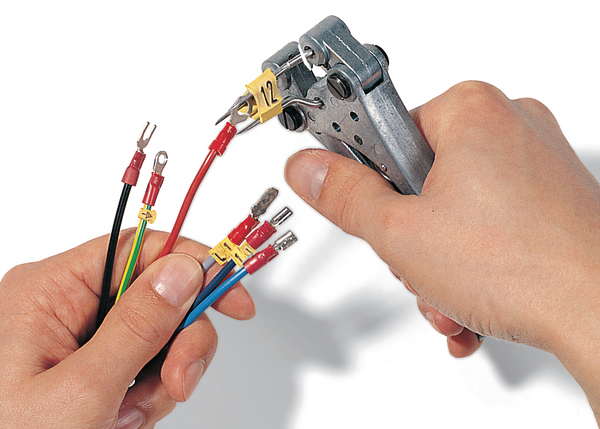

  • To easy affix expandable sleeves of every type onto cables/connectors
  • Sleeve simply slide onto the prongs
  • Push pliers and pull over cable
  • Close pliers, sleeve is placed easily
  • Hellerine lubricant recommended for easy operation

Certifications & Approvals

Colour Metal (ML)
Description Expansion tool NA4/5
Package Quantity per pcs.
PART DESCRIPTION NA4/5-ML
Product Family NA Tool Range
Product Group Three-Pronged Pliers for Sleeves and Grommets

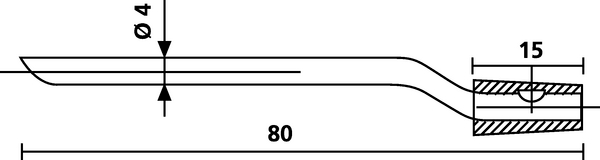

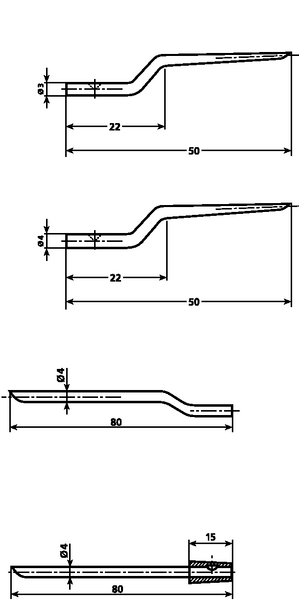

Replaceable pin Yes
Short Description Three-Pronged Plier NA4/5
Type NA4/5
Bundle ∅ max. 10.00mm
Bundle ∅ min. 7.50mm
Length (L3) 50.0
Max. length of marker 50mm

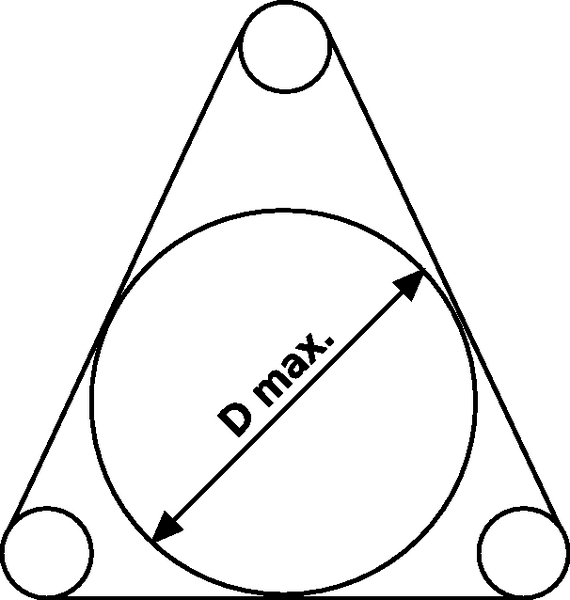

∅ D max. 15.5mm
CAS Number 7439-92-1
Critical Substance Lead concentration bushing > 0.1 < 0.35 %
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Nato number 5120-12-329-4567
Specifications
EAN / GTIN-13 4031026185217
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.18m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0.00166m³
Packaging 1 - Weight (kg) 0.44kg
Packaging 1 - Width (m) 0.092m
Weight 0.44kg
ETIM 6.0 EC000385
ETIM 7.0 Key EC002808
