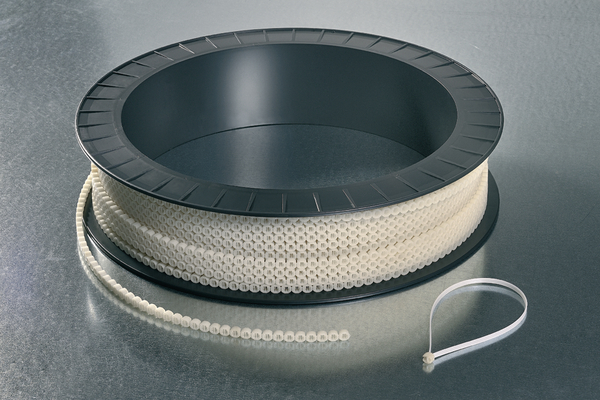

Cable tie for autotools, closures on reel, 9.0x8.0mm, Dmin=0.0mm, Dmax=100mm, natural, 5000pcs.
Art.-No. 102-66209 | Closures_Natural_ATS-PA66HSUV-NA Details

  • Innovative two-piece consumables: closure and strap
  • Outside serrated strap protects the bundle
  • Available on reels of 500 m strap and 5,000 pcs. closures

Request your individual offer now

Application The outside serrated strap is perfectly suitable for sensitive surfaces and can be used for bundling and fixing of cables, pipes and hoses, as well as for bag sealing. The materials are particularly appropriate for high volume bundling applications in cable assembly, automotive, industrial and packaging applications.
Application Method
Application Tool ATS3080, ATS_flex
Bench mount kit Tool and tie reel retainer including foot pedal
Colour Natural (NA)
Description Closures Natural ATS
Harness board accessory HH20 Raises the bundle off the harness board at optimum height and allows the operator to eliminate handling the bundle when applying ties.
Identification Plate Position none
Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
Operation electrical
PART DESCRIPTION Closures_Natural_ATS-PA66HSUV-NA
Pack Cont. 5000pcs.
Package Content packed in pcs.
Power Supply unit Input: 240/115 V a.c., 50/60 Hz, Output: 48 V d.c., max. 150 W
Product Family Cable ties for Autotool System ATS
Product Group Waste-free bundling up to Ø 100 mm
Releasable Closure (Yes/No) No
Short Description Automatic cable tying system closure, 8x9 mm, PA66HSUV, natural
Tool suitable cable tie material Plastic
Type Closures_Natural_ATS
Variant closures on reel
Bundle Diameter max (metric) 100mm
Bundle ∅ 0.0-100mm
Bundle ∅ min. 0.0mm
Height (H) 5.4mm
Length (L) 9.0mm
Min.Tensile Strength 225N
Weight/Unit 0.000315kg
Width (W) 8.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026216904
Minimum Order Quantity 20000
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.39m
Packaging 1 - Qty 5000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01369
Packaging 1 - Weight (kg) 1.633576kg
Packaging 1 - Width (m) 0.39m
Packaging 3 - Height (m) 0.406m
Packaging 3 - Length (m) 0.398m
Packaging 3 - Qty 20000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0599
Packaging 3 - Weight (kg) 7.164304kg
Packaging 3 - Width (m) 0.371m
Packaging 4 - Height (m) 0.956m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 240000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.918
Packaging 4 - Weight (kg) 106.992kg
Packaging 4 - Width (m) 0.8m
Reel Diameter 387mm
Reel Length (imperial) 15.25"
Reel Weight 3.5lbs
Reel Weight 1.58kg
Reel Width 88.9mm
Reel Width (imperial) 3.5"
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
