Cable ties for Autotool System ATS
Art.-No. 102-66109 | Strap_Natural_ATS-PA66HIRHSUV-NA Details

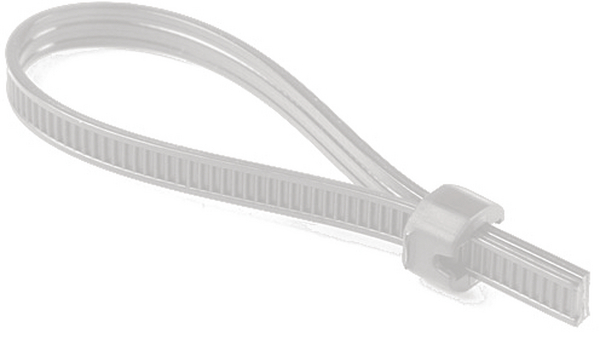

  • Innovative two-piece consumables: closure and strap
  • Outside serrated strap protects the bundle

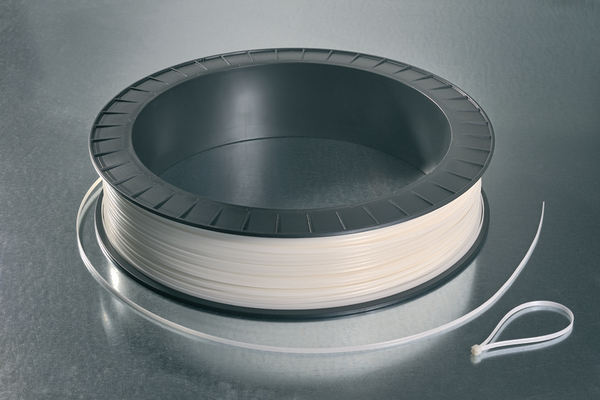

  • Available on reels of 500 m strap and 5,000 pcs. closures

Request your individual offer now

Application The outside serrated strap is perfectly suitable for sensitive surfaces and can be used for bundling and fixing of cables, pipes and hoses, as well as for bag sealing. The materials are particularly appropriate for high volume bundling applications in cable assembly, automotive, industrial and packaging applications.
Application Method Strap and closures have to be applied with the electrically operated automatic cable tying Autotool System ATS from HellermannTyton. The cycle time is 1.3 sec.
Application Tool ATS3080
Bench mount kit Tool and tie reel retainer including foot pedal
Colour Natural (NA)
Description Strap Natural ATS
Harness board accessory HH20 Raises the bundle off the harness board at optimum height and allows the operator to eliminate handling the bundle when applying ties.
Identification Plate Position none
Local order number Strap Natural ATS
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Operation electrical
PART DESCRIPTION Strap_Natural_ATS-PA66HIRHSUV-NA
Pack Cont. 500m
Package Content packed in Reel
Power Supply unit Input: 240/115 V a.c., 50/60 Hz, Output: 48 V d.c., max. 150 W
Product Family Cable ties for Autotool System ATS
Product Group Waste-free bundling up to Ø 100 mm
Releasable Closure (Yes/No) No
Short Description Automatic cable tying system strap, 4.5x1.2 mm, PA66HIRHSUV, natural
Tool suitable cable tie material Plastic
Type Strap_Natural_ATS
Variant on reel
Bundle Diameter max (metric) 100mm
Bundle ∅ 0.0-100mm
Bundle ∅ min. 0.0mm
Cable Tie Head Height (metric) 5.4mm
Cable Tie Head Width (metric) 8.0mm
Height (H) 1.2mm

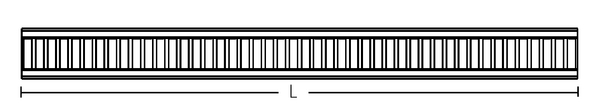

Length (L) 500.0m
Min.Tensile Strength 225N
Weight/Unit 0.0056kg
Width (W) 4.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +95 °C, (+105 °C, 5000 h; +145 °C, 500 h)
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026217055
Minimum Order Quantity 4
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.39m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01369
Packaging 1 - Weight (kg) 2.858576kg
Packaging 1 - Width (m) 0.39m
Packaging 3 - Height (m) 0.406m
Packaging 3 - Length (m) 0.398m
Packaging 3 - Qty 2000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0599
Packaging 3 - Weight (kg) 12.064304kg
Packaging 3 - Width (m) 0.371m
Packaging 4 - Height (m) 0.956m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.918
Packaging 4 - Weight (kg) 165.792kg
Packaging 4 - Width (m) 0.8m
Reel Diameter 387mm
Reel Length 500m
Reel Length (imperial) 1640.0ft
Reel Length (imperial) 15.25"
Reel Weight 6lbs
Reel Weight 2.72kg
Reel Width 88.9mm
Reel Width (imperial) 3.5"
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
