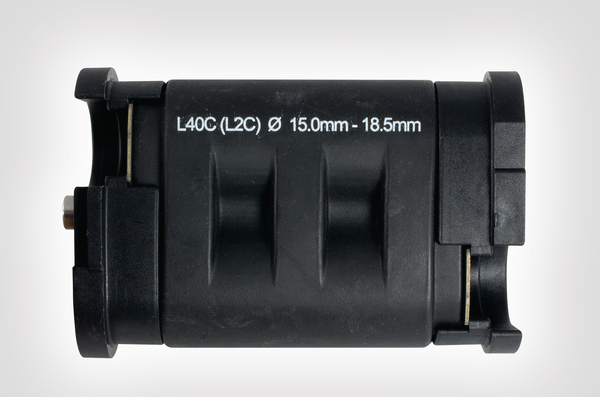

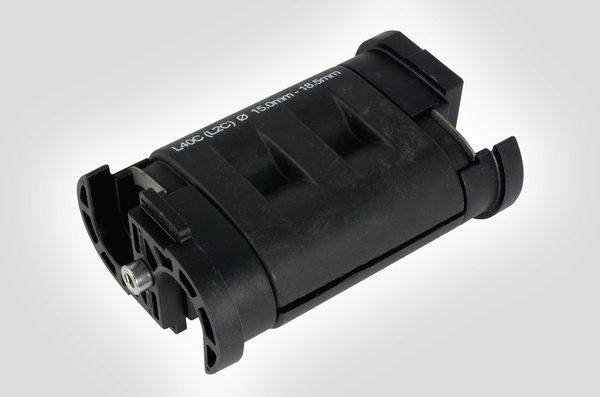

L Port Cablelok CABLELOK-L40C-01

Cablelok, Article number: 857-50193

Features

  • Cable range coverage from 5.5mm to 20.0mm
  • Dual outlet for loop through applications
  • Port closure plug available
  • Supplied in multiples of 1 and 10
  • Supplied with installation lubricant sachets
Cable ∅ max 18.5mm
Cable ∅ min 15.0mm
Colour Black (BK)
Content 1 x CABLELOK-L40C(L2C), 1 x Allen Key, 2 x Lubricating Wipes
Pack Cont. 1
PART DESCRIPTION CABLELOK-L40C-01
Port L
Port count 2
Product Family Cablelok
Product Group L Port Cablelok
Technical Description The L Port Cablelok is a mechanical seal manufactured from Neoprene rubber, Minlon and Acetal. There are 6 Cablelok's which cover a cable range of 5.5mm – 20.0mm five of which have a dual outlet for loop through applications, the sixth being a port plug for blocking unused L sized drop ports.
Variant Oval - L
Material Chloroprene rubber (CR)
EAN / GTIN 5022660102455
ETIM 6.0 EC002609
