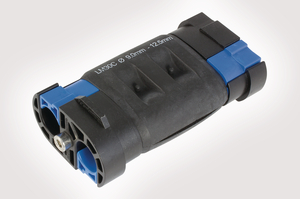

LM Port Cablelok : CABLELOK-LM30C-10

Cablelok, Article number: 857-50208

Features

  • Cable range coverage from 4.0mm to 15.0mm
  • Dual outlet for loop through applications
  • Port closure plug available
  • Supplied in multiples of 1 and 10
  • Supplied with installation lubricant sachets.

Certifications & Approvals

Cable ∅ max 12.5mm
Cable ∅ min 9.0mm
Colour Black (BK)
Content 10 X CABLELOK-LM30C, 1 x Allen Key, 20 x Lubricating Wipe
Pack Cont. 10pcs.
Package Quantity per Bag
PART DESCRIPTION CABLELOK-LM30C-10
Port LM
Port count 2
Product Family Cablelok
Product Group LM Port Cablelok

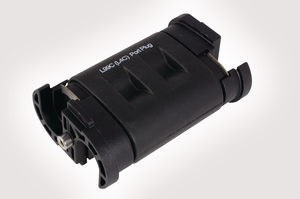

Technical Description The LM Port Cablelok is a mechanical seal manufactured from Neoprene rubber, Minlon and Acetal. There are 5 Cablelok's which cover a cable range of 4.8mm – 15.0mm four of which have a dual outlet for loop through applications, the fifth being a port plug for blocking unused LM sized drop ports.
Variant Oval - LM
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Chloroprene rubber (CR)
Specifications
EAN / GTIN 5022660113079
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.33m
Packaging 1 - Qty 10
Packaging 1 - Type Pack
Packaging 1 - Volume (m³) 0.0062
Packaging 1 - Weight (kg) 1.43kg
Packaging 1 - Width (m) 0.235m
Weight 1.43kg
ETIM 6.0 EC002609
ETIM 7.0 Key EC002609
UNSPSC Key 43202218
