Closure Base Accessories
Art.-No. 857-40288 | TF-3F-BL25 Details

  • Easy to fit by hand
  • Used for securing transportation tubing to splice trays
  • Two options for outer diameter tube sizes of 4mm and 3mm
  • Ribbon fibre option for 8 or 12 fibre ribbon cable
  • 4 way tubefix option available for tubes with an outer diameter of 1.9mm
Show more

Request your individual offer now

Colour Blue (BU)

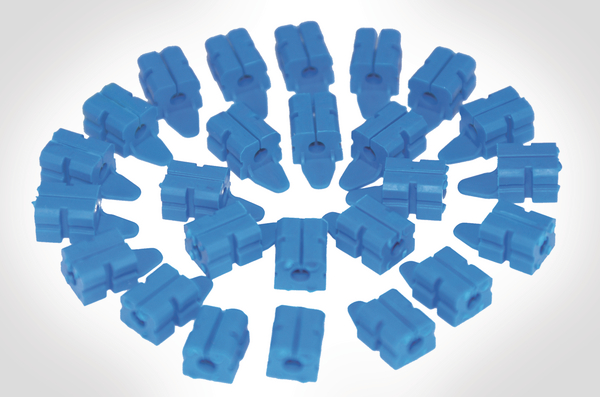

Description 3F Tubefix Blue
Material Thermoplastic Elastomer (TPV)
Pack Cont. 25pcs.
Package Content packed in Bag
PART DESCRIPTION TF-3F-BL25
Product Family Closure Base Accessories
Product Group 3F Tubefix
Technical Description Tubefix is used to secure transportation tubing to trays. Tubefix is available in two sizes 3F which accepts a maximum tube outer diameter of 4mm and 8F which accepts a maximum tube outer diameter of 3mm. A 4 way 11F tubefix option is available which accepts an outer tube diameter of 1.9mm and can be used to secure tubing to splitter units and connector plates. The ribbon tubefix accepts 8 or 12 fibre ribbon cable and is suitable for use with the HellermannTyton Ribbon Fibre Trays.
Diameter (D) 4.0mm
Height (H2) 6.0mm
Inside Ø (ID) 2.8mm
Length (L) 14.34mm
Outside Ø (OD) 4.0mm
Width (W) 7.4mm
∅ (D2) 2.8mm
ELV compliant Dir. Art. 4 (2) YES
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660114687
ETIM 7.0 Key EC002609
ETIM 8.0 Key EC002609
ETIM 9.0 Key EC002609
UNSPSC Key 43223338
