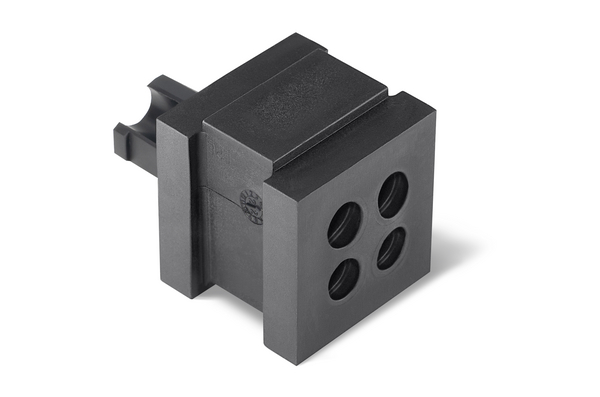

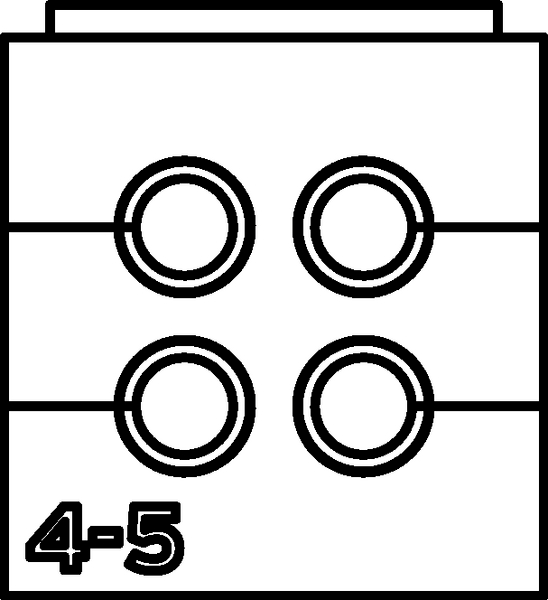

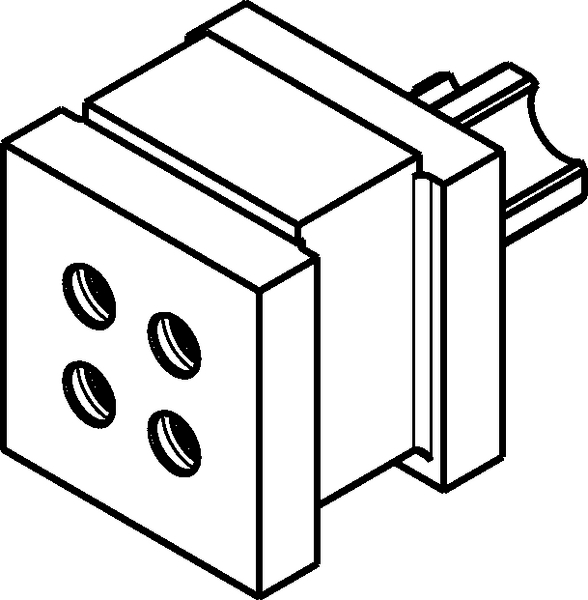

Cable entry system, Insert, 21.1x21.1x20.0mm, 4 holes, Ø4.0 - 5.0mm, black, 20pcs.
Art.-No. 440-00022 | VP-S_4/4-5_Ins-quad-TPE-BK Details

  • Integrated cable diameter tolerance compensation
  • Modular application for both insert sizes (S and L)
  • Integrated strain relief
  • IP 65 and IP 66

Request your individual offer now

Configurator
Application VarioPlate cable entry system inserts grommets are used in combination with VarioPlate frames for time and space saving cable installation on all types of panel builder housings and controll boxes. The versatile design covers cable diameter from 3 to 33mm. Inserts grommets are available in one, two, four holes and blindplugs.
Application Tool VP Mounting Tool
Cable ∅ max 5.0mm
Cable ∅ min 4.0mm
Colour Black (BK)
Description VarioPlate Insert Grommets Small Quad 4-5 mm
Material Thermoplastic Elastomer (TPE)
Pack Cont. 20pcs.
Package Content packed in Bag
PART DESCRIPTION VP-S_4/4-5_Ins-quad-TPE-BK
Product Family VarioPlate Insert Grommets Small Quad 4-5 mm
Product Group VarioPlate Cable Entry System
Short Description VarioPlate Insert Grommets Small Quad 4-5 mm
Variant Both sides open
Depth (D) 32.00mm
Height (H) 20.0mm
Length (L) 21.1mm
Weight/Unit 0.007kg
Width (W) 21.1mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
IP-Rating IP66
Operating Temperature -40 °C to +100 °C
Self extinguishing Yes
Shelf Life Unlimited
Specifications
Specifications csa-C22.2 No. 94.1, csa-C22.2 No. 94.2, UL 50, UL 50E
UL OCD link Link Link
UL-File Number E526974
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026686431
Packaging 1 - Height (m) 0.07m
Packaging 1 - Length (m) 0.112m
Packaging 1 - Qty 20
Packaging 1 - Type Carton
Packaging 1 - Volume (m³) 0.00083
Packaging 1 - Weight (kg) 0.178kg
Packaging 1 - Width (m) 0.106m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Type pallet
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000322
ETIM 8.0 Key EC000322
ETIM 9.0 Key EC000322
