Accessory for CS-AWL, CABLE SCOUT, transparent, 1pc. (CS-SA)
Art.-No. 897-90004 | CS-SA-PVC-CL Details

  • Accessory kit: includes a 15 cm long flexi lead, gender changer, mini hook, tuff hook, mini eye, split ring, round bullet, flat bullet, single magnet, chain

Request your individual offer now

Application Cable Scout+ is supplied with a range of useful standard accessories. Additional accessories can be purchased separately. Cable Grips are designed to grip objects and provide reliable and time saving method of securing cables & pipes to the rods. Just open the grip by compressing the braid, push the grip over the cable or pipe and release the grip, which will contract and establish a tight grip on the cable or pipe to the rod set.
Colour Transparent (CL)

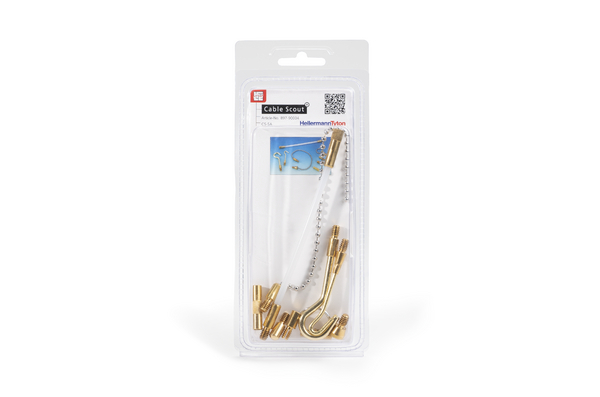

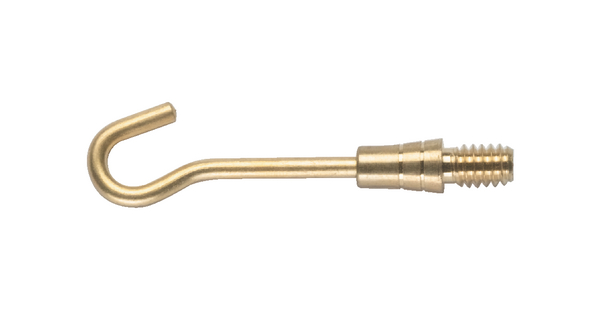

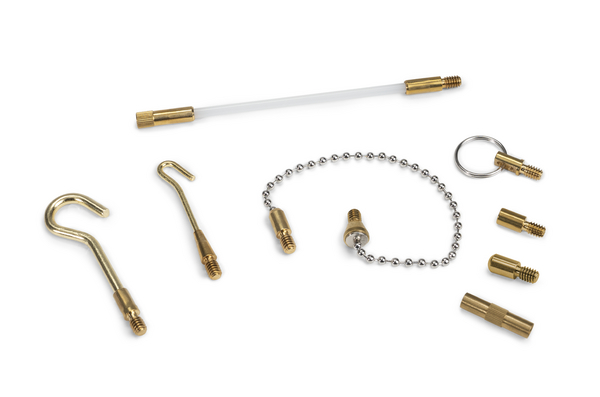

Description Accessory Kit: Includes a 15 cm long flexi lead, gender changer, mini hook, tuff hook, mini eye, split ring, round bullet, flat bullet, single magnet, chain
Material Flexible Polyvinyl Chloride (PVC)
PART DESCRIPTION CS-SA-PVC-CL
Pack Cont. 1pc.
Package Content packed in Bag
Product Family Cable Scout+ Accessories
Product Group Cable Installation System - Cable Scout+
Short Description Cable Installation System Accessory Kit
Type CS-SA
Length (L) 230mm
Weight/Unit 0.128kg
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin CN
Customs Number 82055980
GTIN-13 / EAN 4031026406282
Packaging 1 - Height (m) 0.028m
Packaging 1 - Length (m) 0.24m
Packaging 1 - Qty 1
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00067
Packaging 1 - Weight (kg) 0.128001kg
Packaging 1 - Width (m) 0.1m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Qty 25
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Weight (kg) 3.7kg
Packaging 2 - Width (m) 0.267m
Packaging 3 - Height (m) 0.28m
Packaging 3 - Length (m) 0.52m
Packaging 3 - Qty 100
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0721
Packaging 3 - Weight (kg) 15.3kg
Packaging 3 - Width (m) 0.495m
Packaging 4 - Height (m) 9.85m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 600
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 9.456
Packaging 4 - Weight (kg) 112.8kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000167
ETIM 8.0 Key EC000167
ETIM 9.0 Key EC000167
