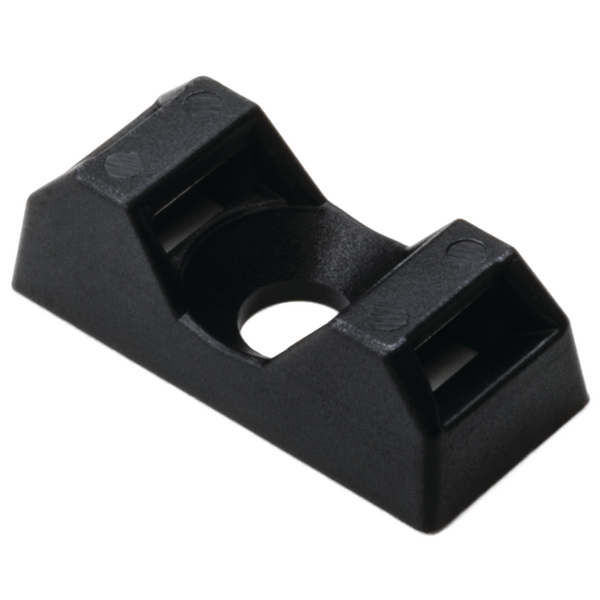

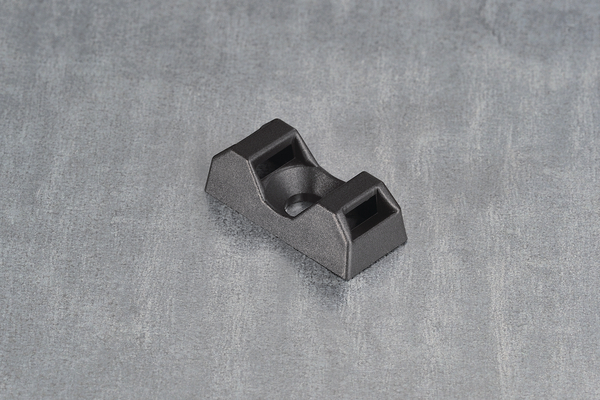

Screw Fixing Cable Tie Mounts CTQM for limited space CTQM5

Q-mount Series CTQM, Article number: 151-10930

Features

  • 2-way mounting base for safe guiding of cables and conduits
  • For cable ties up to 5 mm width
  • Uses screw with countersunk head (max. ø of head: 8.0 mm)
  • Perfect for combination with Q-ties
  • Pre-assembly feature in combination with cable tie
  • Holds the cable tie in vertical mounting position

Certifications & Approvals

Application

CTQM mounts are ideally suited for holding our innovative Q-ties in place. They would perfectly fit to all applications where a reliable and durable fixation is required and where space is limited.

Q-mount Series CTQM is suitable for following markets and industries

Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Screwable Fixing Mount 21x9.5 black
Fixation Method Screw Mounting and Rivet
GLOBAL PART DESCRIPTION CTQM5-PA66-BK
Mounting Screw Type #8 (M4) Screw
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family Q-mount Series CTQM
Product Group Screw Fixing Cable Tie Mounts CTQM for limited space
Type CTQM5-PA66-BK-C1
for Hole ∅ (FH) 4.5 mm
Height (H) 6.7mm
Length (L) 21.0mm
Strap Width max. (G) 5.0mm
Strap Width max. (G) (imperial) 0.2"
Width (W) 9.5mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogenfree Yes
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL Recognized (US and Canada) Yes
UL-File Number E65344
EAN / GTIN 4031026413822
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.12m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00127
Packaging 1 - Weight (kg) 0.0509kg
Packaging 1 - Width (m) 0.265m
Packaging 3 - Height (m) 0.17m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 3000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0171
Packaging 3 - Weight (kg) 1.747kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.171m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 144000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.124
Packaging 4 - Weight (kg) 105.0kg
Packaging 4 - Width (m) 0.8m
Weight 0.047kg
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121717
