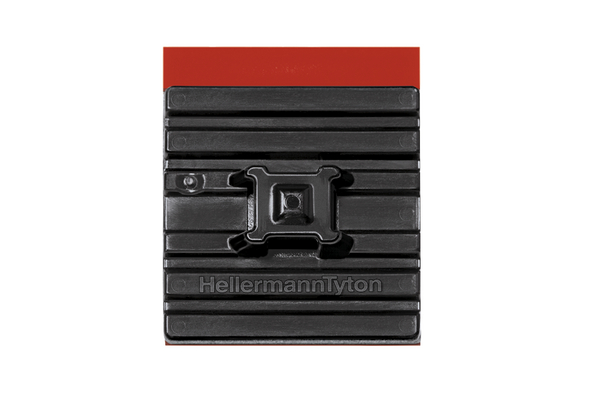

Cable tie mounts with high performance adhesive : FMB4APT-I
Flexible Fixing Part with Special Adhesive 28x28 black, Article number: 151-01527
Features
- Flexible Mount for round and angled surfaces
- FMB mounts with homogeneous system of acrylic adhesive
- Allows greater design freedom and offers uniform stress distribution along with weight reduction
- Adhesive with high cohesive strength combined with good weathering resistance
- Innovative fixing solution for high and low energy surfaces
- Protection foil with finger lift for easy peel off
- Temperature resistance up to +105 °C
- 4-way entry for cable tie for quicker and more flexible installation
- FMB4APT-I is also suitable for high energy surfaces like metal or glass
Certifications & Approvals
Application
FlexTack mounts offering an innovative fixing solution especially for concave or convex low energy surfaces like PP, PE or if drilling a hole is not possible. Suitable for a wide range of in- and outdoor applications on varnished, plastic or metal surfaces in many areas e. g. electrical cabinet, railway, aerospace, automotive and agriculture machinery.
More products in this product group
Cable tie mounts with high performance adhesive >| Colour | Black (BK) |
| Fixation Method | Self-Adhesive |
| Maximum Static Load (lb/ft) | 1.1lbf-ft |
| Pack Cont. | 100pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | FMB4APT-I-PA66HS-BK |
| Product Family | FlexTack-Series FMB for round and angled surfaces |
| Product Group | Cable tie mounts with high performance adhesive |
| Short Description | Flexible Fixing Part with Special Adhesive 28x28 black |
| Type | FMB4APT PA66 BK 100 |
|
|
|
| Height (H) | 6.3mm |
| Length (L) | 28.0mm |
| Strap Width max. (G) | 5.4mm |
| Strap Width max. (G) (imperial) | 0.213" |
| Width (W) | 28.0mm |
| Adhesive | Acrylate with base of acrylic foam |
| Adhesive Operating Temperature | -35 °C to +70 °C |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 (excluding adhesive) |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
|
|
|
| EAN / GTIN | 4031026543703 |
| Packaging 1 - Height (m) | 0.12m |
| Packaging 1 - Length (m) | 0.155m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00502m³ |
| Packaging 1 - Weight (kg) | 0.17964kg |
| Packaging 1 - Width (m) | 0.27m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 9.632kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.235m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 100000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.186m³ |
| Packaging 4 - Weight (kg) | 213.2kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.396lbs |
| Weight | 0.1702kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| UNSPSC Key | 39121717 |
