Screw fixing mounts : KR6G5

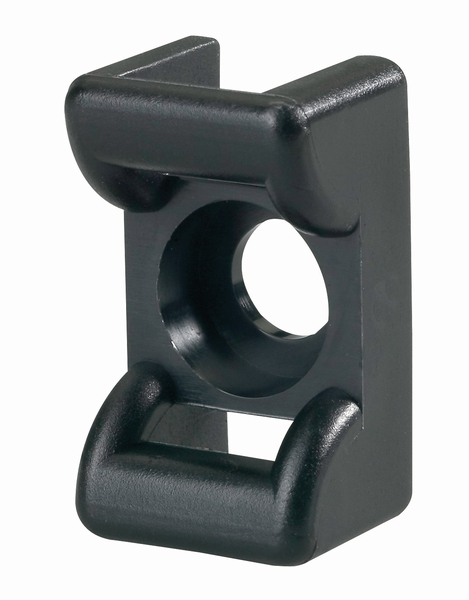

Screw Fixing Mount with curved design 18x12 blackArticle number: 151-24600
Features
- Curved design for additional cable support
- Simple to install with a screw or bolt
- Excellent security, particularly in areas of high vibration
- Mounts are available in various sizes and materials
Certifications & Approvals
Application

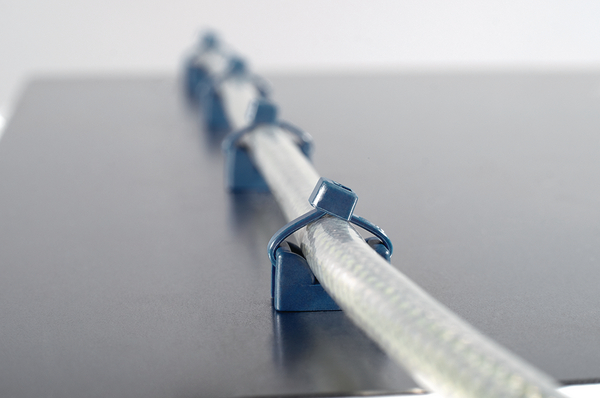

Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from Agriculture to Truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 7.6 mm wide.
More products in this product group
Screw fixing mounts >| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Mounting Screw Type | M4 |
| Pack Cont. | 100pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | KR6G5-PA66-BK |
| Product Family | KR with curved design for KR-Ties |
| Product Group | Screw fixing mounts |
| Short Description | Screw Fixing Mount with curved design 18x12 black |
| Type | KR6G5.NB3P |
|
|
|
| for Hole ∅ (FH) | 4.5 mm |
| Height (H) | 9.0mm |
| Height (H2) | 4.0mm |
| Length (L) | 18.0mm |
| Strap Width max. (G) | 6.0mm |
| Width (W) | 12.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026312415 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00127m³ |
| Packaging 1 - Weight (kg) | 0.11277kg |
| Packaging 1 - Width (m) | 0.265m |
| Packaging 3 - Height (m) | 0.17m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0171m³ |
| Packaging 3 - Weight (kg) | 3.6031kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.17m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 144000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.123m³ |
| Packaging 4 - Weight (kg) | 194.28kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.088kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
