Screw fixing mounts : KR8G5

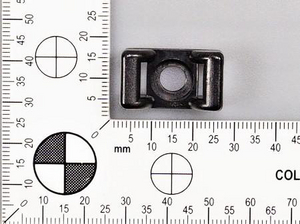

Screw Fixing Mount with curved design 25x14.5 HS-blackArticle number: 151-24850
Features
- Curved design for additional cable support
- Simple to install with a screw or bolt
- Excellent security, particularly in areas of high vibration
- Mounts are available in various sizes and materials
Certifications & Approvals
Application
Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm width.
More products in this product group
Screw fixing mounts >| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Mounting Screw Type | M6 |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | KR8G5-PA66HS-BK |
| Product Family | KR with curved design for KR-Ties |
| Product Group | Screw fixing mounts |
| Short Description | Screw Fixing Mount with curved design 25x14.5 HS-black |
| Type | KR8G5.NB3P |
|
|
|
| for Hole ∅ (FH) | 6.5 mm |
| Height (H) | 12.0mm |
| Height (H2) | 5.5mm |
| Length (L) | 25.0mm |
| Strap Width max. (G) | 8.0mm |
| Width (W) | 14.5mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+145 °C, 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026217468 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.23m |
| Packaging 1 - Qty | 100 |

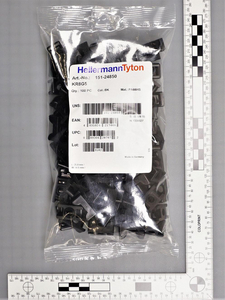

| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00086m³ |
| Packaging 1 - Weight (kg) | 0.22477kg |
| Packaging 1 - Width (m) | 0.15m |
| Packaging 3 - Height (m) | 0.17m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0171m³ |
| Packaging 3 - Weight (kg) | 4.7154kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.171m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 96000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.124m³ |
| Packaging 4 - Weight (kg) | 247.56kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.2kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
| UNSPSC Key | 39121703 |
