09/12/2024

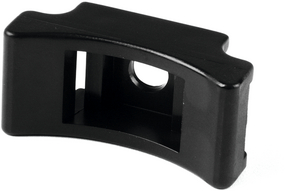

Cable tie mount for screw fixation, Wmax=8.0mm, ∅5.5 mm, M4 Screw, black, 100pcs.
Art.-No. 151-27010 | LKC-PA66-BK Details

  • Curved design for additional cable support
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration

Request your individual offer now

Application Designed specifically for holding heavier cable bundles, these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 13 mm width.
Colour Black (BK)
Fixation Method Screw Mounting and Rivet
For Ties T50 - T250
Local order number LKC.NB3P
Material Polyamide 6.6 (PA66)
Mounting Screw Type M4 Screw
PART DESCRIPTION LKC-PA66-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family LKC with overlapping curved design
Product Group Screw fixing mounts
Short Description Screw Fixing Mounts with overlapping curved design 25x17 black
Type LKC
Height (H) 13.5mm
Length (L) 25.0mm
Strap Width max. (G) 8.0mm
Weight/Unit 0.001585kg
Width (W) 17.0mm
for Hole ∅ (FH) 5.5 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660020759
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.215m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00129
Packaging 1 - Weight (kg) 0.158501kg
Packaging 1 - Width (m) 0.15m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 6000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 10.31206kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 227.24kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
