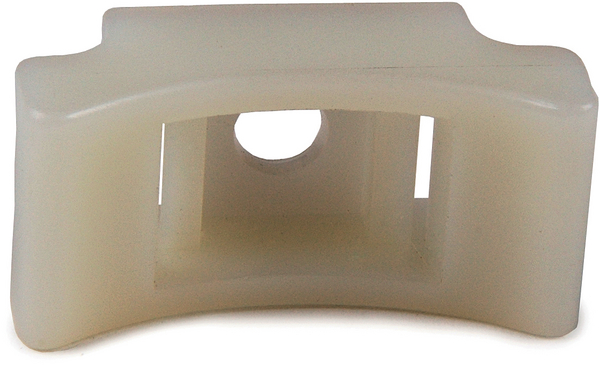

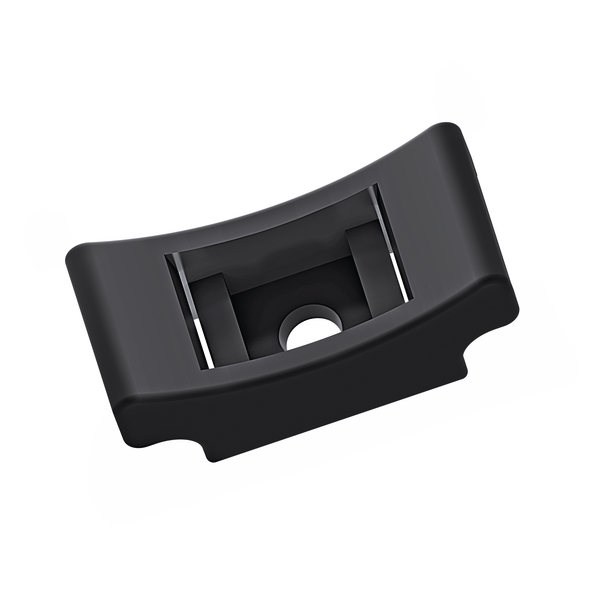

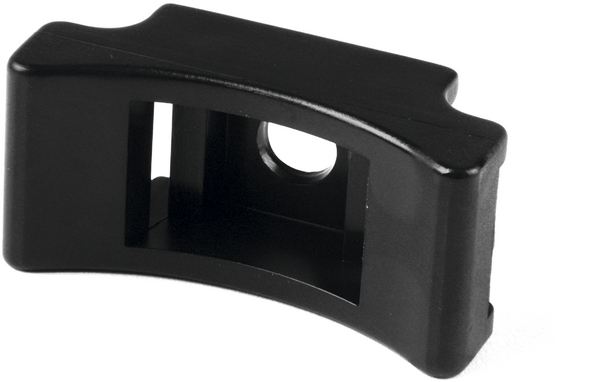

Screw Fixing Mounts LKCSF1

LKC with overlapping curved design, Article number: 151-27219

Features

  • Curved design for additional cable support
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration

Certifications & Approvals

Application

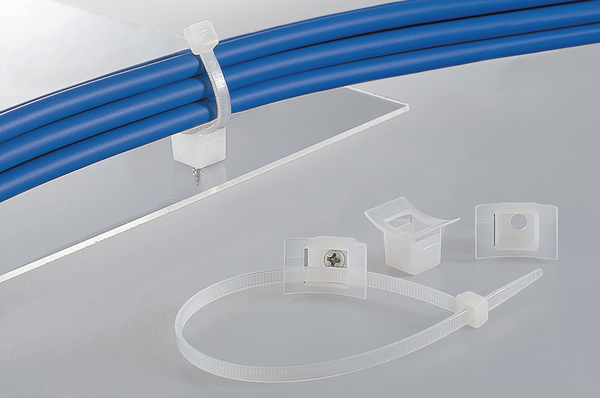

Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacture. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 13mm wide.

LKC with overlapping curved design is suitable for following markets and industries

Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Screw Fixing Mounts with overlapping curved design 40x19 natural
Fixation Method Screw Mounting and Rivet
GLOBAL PART DESCRIPTION LKCSF1-PA66-NA
Mounting Screw Type M6
Pack Cont. 100pcs.
Package Quantity per Bag
Product Family LKC with overlapping curved design
Product Group Screw Fixing Mounts
Short Description Both the LKC and LKCSF1 mounts give additional support to the cables by means of their curved design, whilst the LKCR and LKCS are the 'screw mounted' versions of the popular LKCRSA and LKCSSA.self adhesive mounts. Simple to install with a screw or bolt they give excellent security, particularly in areas of high vibration.
Type LKCSF1.NN3P

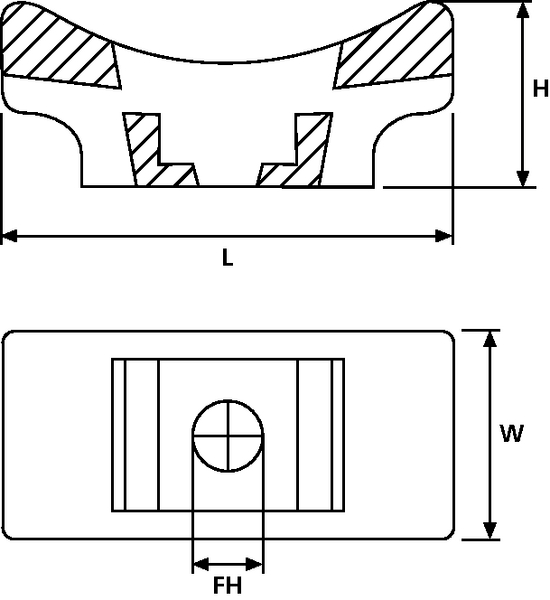

for Hole ∅ (FH) 6.0 mm
Height (H) 16.8mm
Length (L) 40.0mm
Strap Width max. (G) 13.0mm
Width (W) 19.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6 (PA66)
Operating Temperature - °C -40 °C to +85 °C
Specifications
EAN / GTIN 5022660155062
Packaging 1 - Height (m) 0.071m
Packaging 1 - Length (m) 0.215m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00273m³
Packaging 1 - Weight (kg) 0.48kg
Packaging 1 - Width (m) 0.179m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 2000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048m³
Packaging 3 - Weight (kg) 10.402kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117m³
Packaging 4 - Weight (kg) 229.04kg
Packaging 4 - Width (m) 0.8m
Weight 0.48kg
ETIM 5.0 EC000449
ETIM 6.0 EC000449
UNSPSC Key 39121717
