Cable tie mount for adhesive use, Wmax=2.7mm, black, 100pcs.
Art.-No. 151-02243 | MB2APT-A-PA66-BK Details

  • MB mounts with homogeneous system of acrylic adhesive
  • Very good initial adhesion, increases with time
  • Innovative fixing solution for high and low energy surfaces
  • Protection foil with finger lift for easy peel off

Request your individual offer now

Application SolidTack MB Series mounts have a square design and are fairly common in areas like electrical cabinet, railway, aerospace, automotive and agriculture machinery. The premium self-adhesive bonds well on high and low-energy surfaces like plastics, metal, varnish or paint and is suitable for a wide range of applications.
Colour Black (BK)
Fixation Method Screw Mounting and Adhesive
Local order number MB2APT-A PA66 BK 100
Material Polyamide 6.6 (PA66)
PART DESCRIPTION MB2APT-A-PA66-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family SolidTack-Series MB
Product Group Cable tie mounts with high performance adhesive
Short Description Fixing parts with adhesive 13x13 black
Type MB2APT-A

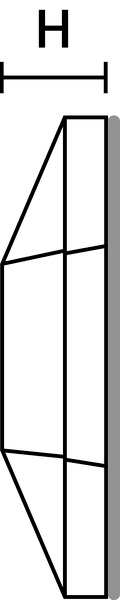

Height (H) 4.1mm
Length (L) 13.0mm
Strap Width max. (G) 2.7mm
Weight/Unit 0.000485kg
Width (W) 13.0mm
Adhesive Acrylate with base of acrylic foam
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026604077
Packaging 1 - Height (m) 0.01m
Packaging 1 - Length (m) 0.25m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00055
Packaging 1 - Weight (kg) 0.05748kg
Packaging 1 - Width (m) 0.22m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 25000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 14.965kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 300000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 200.64kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
