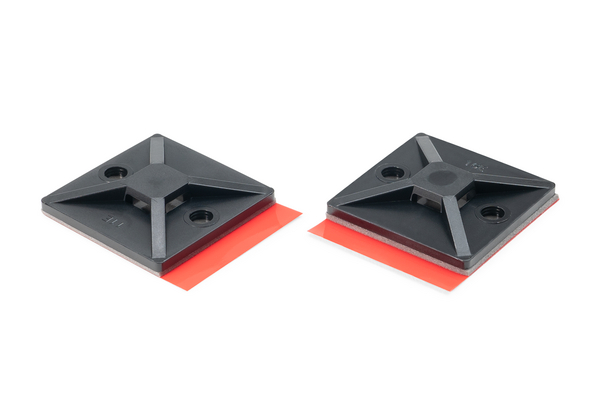

Cable tie mount for adhesive use, Ø4.0 mm, black, 100pcs.
Art.-No. 151-02245 | MB4APT-A-PA66-BK Details

  • MB mounts with homogeneous system of acrylic adhesive
  • Very good initial adhesion, increases with time
  • Innovative fixing solution for high and low energy surfaces
  • Protection foil with finger lift for easy peel off

Request your individual offer now

Application SolidTack MB Series mounts have a square design and are fairly common in areas like electrical cabinet, railway, aerospace, automotive and agriculture machinery. The premium self-adhesive bonds well on high and low-energy surfaces like plastics, metal, varnish or paint and is suitable for a wide range of applications.
Colour Black (BK)
Fixation Method Screw Mounting and Adhesive
Local order number MB4APT-A PA66 BK 100
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION MB4APT-A-PA66-BK
Product Family SolidTack-Series MB
Product Group Cable tie mounts with high performance adhesive
Short Description Fixing part with adhesive 28x28 black
Fixing Hole Centres (F) 20.2mm
Fixing Hole Centres (F) (imperial) .8"
for Hole ∅ (FH) 4.0 mm
Height (H) 4.7mm
Length (L) 28.0mm
Strap Width max. (G) 5.6mm
Weight/Unit 0.002323kg
Width (W) 28.0mm
Adhesive Acrylate with base of acrylic foam
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026604091
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.13m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00067
Packaging 1 - Weight (kg) 0.24128kg
Packaging 1 - Width (m) 0.205m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 12.714kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 275.3kg
Packaging 4 - Width (m) 0.8m
EFO Norway block number 110101
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
