Cable tie mount for screw fixation, Wmax=4.1mm, ⌀3.1 mm, white, 500pcs.

Art.-No. 151-28725

| MB3-PA66-WH

|

MB-Series Mounts with square design / self-adhesive, screwable.

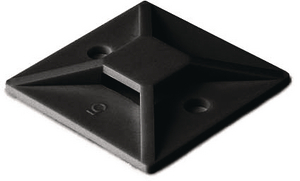

Cable Tie Mounts MB3, MB4, MB5 (plan view)

4-way opening allows cable ties to be installed parallel or perpendicular to bundles.

Screwable or self-adhesive versions
Simple to install with a screw or bolt
Excellent security, particularly in areas of high vibration
Maximum surface area with adhesive to achieve high pull-off force
4-way entry for cable tie for quicker and more flexible installation

Package size

100 pcs.

500 pcs.

Add to watchlist

Request quote

Distributors near you

Downloads

More products in this product group:

Screw fixing cable tie mounts

Base Data

Application	Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from Agriculture to Truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8mm wide.
Colour	White (WH)
Fixation Method	Screw Mounting and Rivet
For Ties	T18 - T30
Local order number	MB3AM.NN6E
Material	Polyamide 6.6 (PA66)
PART DESCRIPTION	MB3-PA66-WH
Package Content	500pcs.
Package Content packed in	Bag
Product Family	MB-Series square design, screwable
Product Group	Screw fixing cable tie mounts
Type	MB3

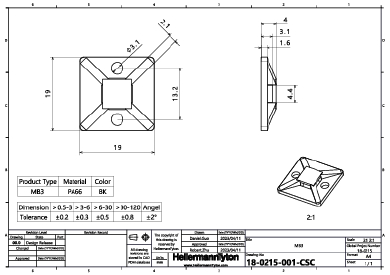

Product Dimensions

Fixing Hole Centres (F)	13.2mm
Height (H)	3.8mm
Length (L)	19.0mm
Strap Width max. (G)	4.1mm
Width (W)	19.0mm
for Hole ⌀ (FH)	3.1 mm

Specifications

Flammability	UL 94 V2 (excluding adhesive)
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	GB
GTIN-13 / EAN	5022660311789

More Information

ETIM 7.0 Key	EC000449
ETIM 8.0 Key	EC000449
ETIM 9.0 Key	EC000449
UNSPSC Key	31162305
