Screw Fixing Cable Tie Mounts : TY3G1

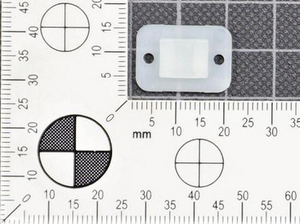

Screw Fixing Cable Tie Mount with longish design 20x14 natural, Article number: 151-21319
Features
- Screwable or self-adhesive versions
- Concave design to support larger diameter cables and bundles
- 2-way mounting base for safe guiding of cables and conduits
- Suitable for applications with minimal space
- Mounted before cable installation
- Usable with standard cable ties
Certifications & Approvals
Application
These products are designed for simple yet robust installation in a wide variety of applications. TY-Series mounts with a rectangular design are commonly used in telecoms equipment, switchgear and control cabinets. With its small and compact design TY3G1 offers an easy and rapid assembly for many different applications.
More products in this product group
Screw Fixing Cable Tie Mounts >| Colour | Natural (NA) |
| Fixation Method | Screw Mounting and Rivet |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | TY3G1-PA66-NA |
| Product Family | TY-Series longish design |
| Product Group | Screw Fixing Cable Tie Mounts |
| Short Description | Screw Fixing Cable Tie Mount with longish design 20x14 natural |
| Type | TY3G1.NN3P |
|
|
|
| Fixing Hole Centres (F) | 15.0mm |
| for Hole ∅ (FH) | 2.2 mm |
| Height (H) | 3.7mm |
| Length (L) | 20.0mm |
| Strap Width max. (G) | 4.0mm |
| Width (W) | 14.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 (excluding adhesive) |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6 (PA66) |
| Nato number | 5975-12-372-8678 |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026122281 |
| Packaging 1 - Height (m) | 0.1m |
| Packaging 1 - Length (m) | 0.125m |

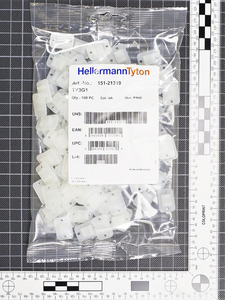

| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0025m³ |
| Packaging 1 - Weight (kg) | 0.08877kg |
| Packaging 1 - Width (m) | 0.2m |
| Packaging 3 - Height (m) | 0.17m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0171m³ |
| Packaging 3 - Weight (kg) | 4.6585kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.171m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 240000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.124m³ |
| Packaging 4 - Weight (kg) | 245.16kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.064kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
