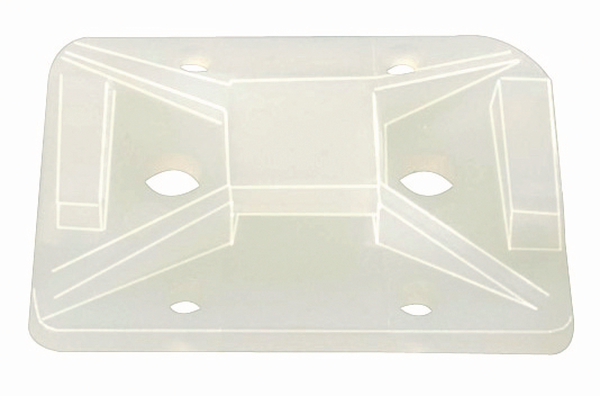

Cable tie mount for screw fixation, Wmax=8.0mm, ⌀3.2 mm, natural, 100pcs.
Art.-No. 151-21819
| TY8G1-PA66-NA
|
Copied
- Screwable or self-adhesive versions
- Concave design to support larger diameter cables and bundles
- 2-way mounting base for safe guiding of cables and conduits
- Suitable for applications with minimal space
- Mounted before cable installation
- Usable with standard cable ties
Show more
Show less
Request quote
More products in this product group:
| Colour | Natural (NA) |
| Fixation Method | Screw Mounting and Rivet |
| For Ties | T18 - T120 |
| Local order number | TY8G1.NN3P |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | TY8G1-PA66-NA |
| Package Content | 100pcs. |
| Package Content packed in | pcs. |
| Product Family | TY-Series longish design |
| Product Group | Screw Fixing Cable Tie Mounts |
| Short Description | Screw Fixing Cable Tie Mount with longish design 32x25mm natural |
| Type | TY8G1 |

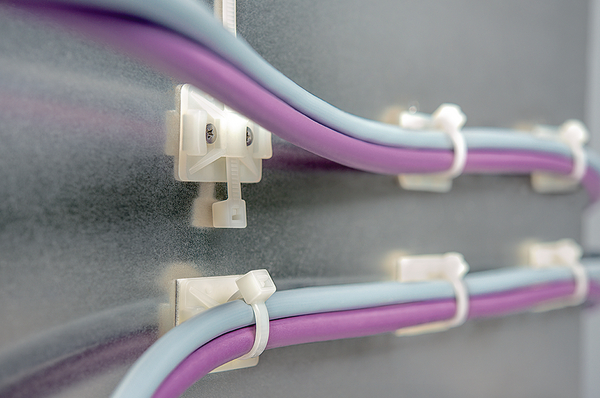

| Typical Application | These products are designed for simple yet robust installation in a wide variety of applications. TY-Series mounts with a rectangular design are commonly used in telecoms equipment, switchgear and control cabinets. With its small and compact design TY3G1 offers an easy and rapid assembly for many different applications. |
| Weight/Unit | 0.002175kg |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026122298 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00117m³ |
| Packaging 1 - Weight (kg) | 0.2255kg |
| Packaging 1 - Width (m) | 0.13m |
| Packaging 3 - Height (m) | 0.171m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 1500 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0172m³ |
| Packaging 3 - Weight (kg) | 4.19155kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.171m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 72000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.124m³ |
| Packaging 4 - Weight (kg) | 222.36kg |
| Packaging 4 - Width (m) | 0.8m |
