Self Adhesive / Screw Fixing Cable Tie Mounts : TY3G1S
Screw Fixing Cable Tie Mount self adhesive 20x14 UV-blackArticle number: 151-11310
Features
- 2-way mounting base for safe guiding of cables and conduits
- Suitable for applications with minimal space
- Mounted before cable installation
Certifications & Approvals
Application
Where speed, simplicity, and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.
More products in this product group
Self Adhesive / Screw Fixing Cable Tie Mounts >| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Adhesive |
| Pack Cont. | 100pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | TY3G1S-PA66W-BK |
| Product Family | TY-Series Rectangle Design, self adhesive, screwable |
| Product Group | Self Adhesive / Screw Fixing Cable Tie Mounts |
| Short Description | Screw Fixing Cable Tie Mount self adhesive 20x14 UV-black |
| Type | TY3G1S.WB3P |

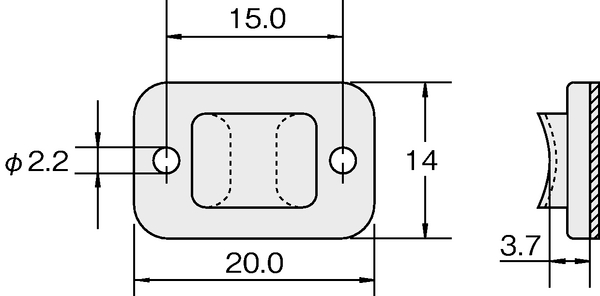

| Fixing Hole Centres (F) | 15.0mm |
| for Hole ∅ (FH) | 2.2 mm |

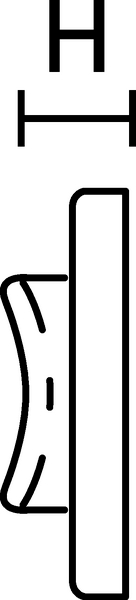

| Height (H) | 3.7mm |
| Length (L) | 20.0mm |
| Strap Width max. (G) | 4.0mm |
| Thickness of Adhesive (TA) nom. | 0.8 |
| Width (W) | 14.0mm |
| Adhesive | Acrylate with base of polyurethane foam |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 (excluding adhesive) |
| Halogenfree | Yes |
| Hazardous good | No |
| Material | Polyamide 6.6, UV-resistant (PA66W) |
| Nato number | 5975-12-372-1098 |
| Operating Temperature - °C | -40 °C to +85 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026122144 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00127m³ |
| Packaging 1 - Weight (kg) | 0.09551kg |
| Packaging 1 - Width (m) | 0.265m |
| Packaging 3 - Height (m) | 0.17m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0171m³ |
| Packaging 3 - Weight (kg) | 4.9955kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.171m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 240000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.124m³ |
| Packaging 4 - Weight (kg) | 261.96kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.09kg |
| ETIM 6.0 | EC000449 |
| ETIM 7.0 Key | EC000449 |
