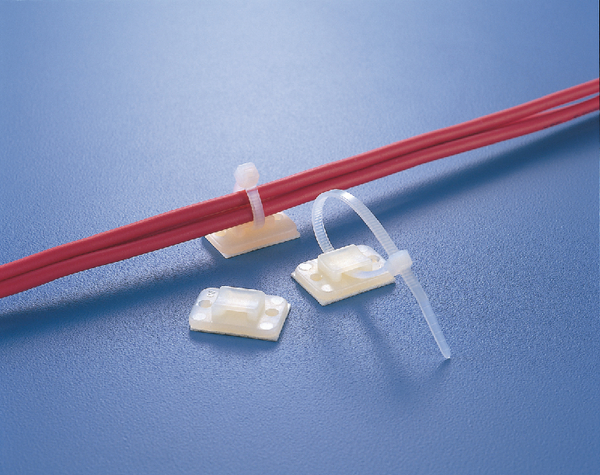

Cable tie mount for adhesive use, Ø2.2 mm, natural, 100pcs.
Art.-No. 151-11319 | TY3G1S-PA66-NA Details

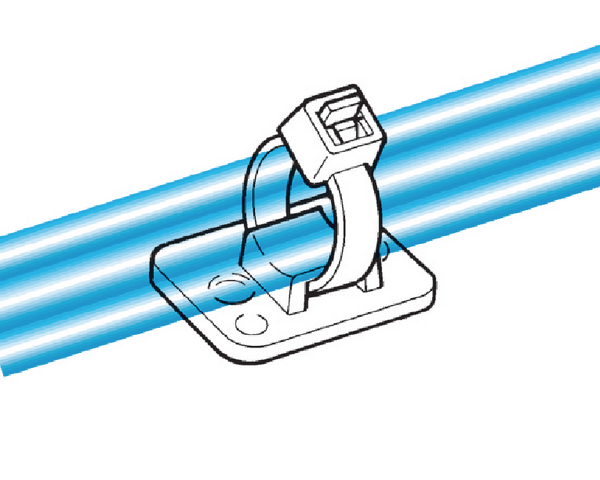

  • 2-way mounting base for safe guiding of cables and conduits
  • Suitable for applications with minimal space
  • Mounted before cable installation

Request your individual offer now

Application Where speed, simplicity, and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.
Colour Natural (NA)
Fixation Method Screw Mounting and Adhesive
For Ties T18 - T40
Local order number TY3G1S.NN3P
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in pcs.
PART DESCRIPTION TY3G1S-PA66-NA
Product Family TY-Series Rectangle Design, self adhesive, screwable
Product Group Self Adhesive / Screw Fixing Cable Tie Mounts
Short Description Screw Fixing Cable Tie Mount self adhesive 20x14 natural
Fixing Hole Centres (F) 15.0mm
for Hole ∅ (FH) 2.2 mm
Height (H) 3.7mm
Length (L) 20.0mm
Strap Width max. (G) 4.0mm
Thickness of Adhesive (TA) nom. 0.8
Weight/Unit 0.000805kg
Width (W) 14.0mm
Adhesive Acrylate with base of polyurethane foam
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Halogen-free Yes
Hazardous Goods No
Nato number 5975-12-196-6091
Operating Temperature -40 °C to +85 °C
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026122168
Packaging 1 - Height (m) 0.02m
Packaging 1 - Length (m) 0.275m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00066
Packaging 1 - Weight (kg) 0.08601kg
Packaging 1 - Width (m) 0.12m
Packaging 3 - Height (m) 0.171m
Packaging 3 - Length (m) 0.56m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0172
Packaging 3 - Weight (kg) 4.5205kg
Packaging 3 - Width (m) 0.18m
Packaging 4 - Height (m) 1.17m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 240000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.123
Packaging 4 - Weight (kg) 239.16kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
