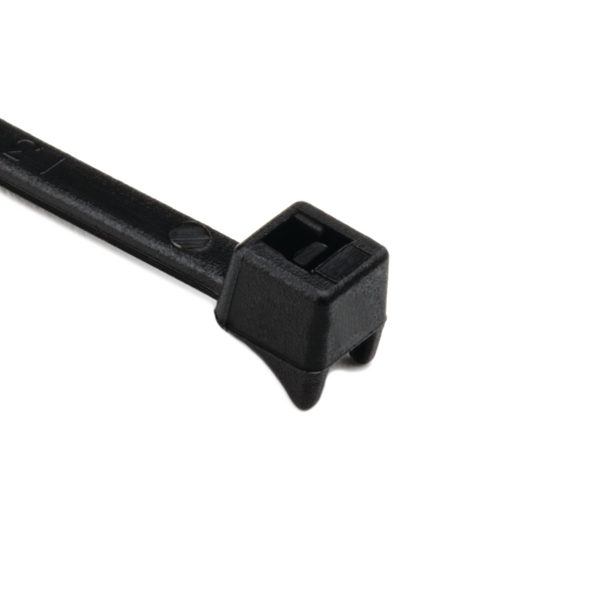

Cable tie inside serrated, 101.6x2.5mm, ⌀1.6-13.0mm, black, 100pcs.
Art.-No. 112-51900 | CTT20R-PA66-BK |

Copied
The Clamp Tie head design contains clamping rails to provide full circumferential compression around bundles.
CTT ties installed on flexible gaiters.
For secure fixing of round and solid shapes.
The Clamp Tie head design contains clamping rails to provide full circumferential compression around bundles.
The Clamp Tie head design contains clamping rails to provide full circumferential compression around bundles.
CTT60R.
The Clamp Tie head design contains clamping rails to provide full circumferential compression around bundles.
CTT series
CTT Hose Ties
The Clamp Tie head design contains clamping rails to provide full circumferential compression around bundles.

    • Curved head design offers a good fit to the bundle
    • Inside serration for a strong hold onto bundles
    • Easy application either manually or with a processing tool
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads e-Learning
    Application CTT is designed to secure pipes, hoses and gaiters where low pressures are being secured. These ties can be used in many different industries including automotive, white goods manufacturing, medical industry and construction.
    Colour Black (BK)
    Identification Plate Position none
    Local order number CTT20R.NB3P
    Material Polyamide 6.6 (PA66)
    Min.Tensile Strength 90N
    PART DESCRIPTION CTT20R-PA66-BK
    Package Content 100pcs.
    Package Content packed in Pack
    Product Family CTT-Series natural and black
    Product Group Cable ties for hose and gaiter
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type CTT20R
    UV-Stabilised No
    Variant Inside Serrated
    Bundle ⌀ 1.6-13.0mm
    Bundle ⌀ max. 13.0mm
    Bundle ⌀ min. 1.6mm
    Length (L) 101.6mm
    Width (W) 2.5mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US) Yes
    UL Type 11
    UL-File Number E64139
    Country of Origin MX
    GTIN-13 / EAN 4031026312231
    Packaging 1 - Qty 100
    Packaging 1 - Type Pack
    Packaging 1 - Weight (kg) 0.0318kg
    Packaging 3 - Height (m) 0.1397m
    Packaging 3 - Length (m) 0.51276m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0223m³
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
